TEST SETUP AND METHODOLOGY
For our testing today we will be using both our consumer and enterprise test systems. Testing will be very simple. We will be using a stopwatch to record the times of POST and Windows boot to desktop. We will be evaluating the speed of the UEFI’s fast boot settings and Windows fast startup being enabled vs disabled with a UEFI install.
We would have liked to bring you MBR installation boot results, however, after many attempts and ISO downloads later, we were unable to install Windows 8.1 on an MBR partitioned drive in our systems.
ENTERPRISE TEST SYSTEM COMPONENTS
| PC CHASSIS: | Thermaltake Urban T81 |
| MOTHERBOARD: | ASRock X99 WS-E |
| CPU: | Intel Xeon E5-2690 v3 |
| CPU COOLER: | Thermaltake Water 3.0 Ultimate |
| POWER SUPPLY: | Thermaltake Toughpower 1500W Gold |
| GRAPHICS: | MSI GeForce GT 720 |
| SYSTEM COOLING: | be quiet! Silent Wings 2 |
| MEMORY: | Crucial Ballistix Sport DDR4 2400MHz |
| STORAGE: | OCZ Vector 180 |
| IRST: |
13.1.0.1058 |
These test systems are the result of some great relationships and purchase; our appreciation goes to those who jumped in specifically to help the cause. Key contributors to this build are our friends at ASRock for the motherboards and CPUs, be quiet! for the PSU and cooling fans, Thermaltake for the cases and PSU, and Kingston for the RAM. We have detailed all components in the tables above and below and they are all linked should you wish to make a duplicate of our system as so many seem to do, or check out the price of any single component. As always, we appreciate your support in any purchase through our links!
CONSUMER TEST SYSTEM COMPONENTS
| PC CHASSIS: | Thermaltake Core V51 |
| MOTHERBOARD: | ASRock Z97 Extreme6 |
| CPU: | Intel Core i5-4670K |
| CPU COOLER: | Corsair H75 |
| POWER SUPPLY: | be quiet! Dark Power Pro 10 850W |
| SYSTEM COOLING: | be quiet! Silent Wings 2 |
| MEMORY: | Kingston HyperX Beast 2400Mhz |
| STORAGE: | OCZ Vector 180 |
| IRST DRIVER: | 13.1.0.1058 |
TESTING RESULTS
Our results are from taking the average of five system boots from powered off to desktop for each UEFI fast boot setting. During testing we noticed that we could disable CSM when fast boot was disabled and displayed the results as well. To show the benefit of Windows fast startup, we also included the results from having both enabled and disabled.

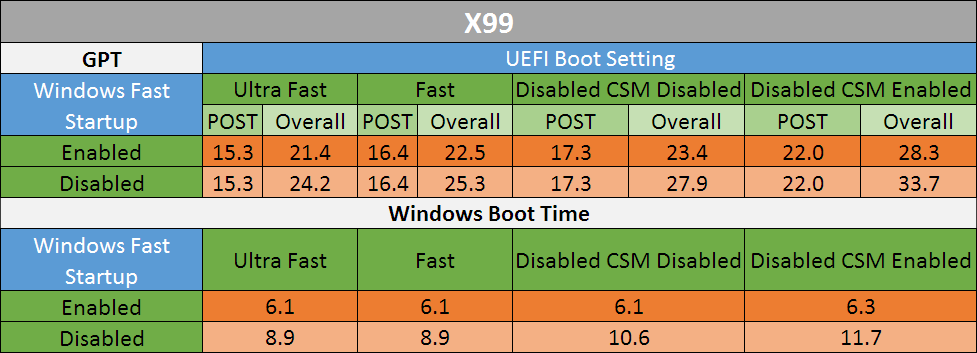

ENTERPRISE SYSTEM
Default settings POST time was 19.8 seconds and Windows boot time was 9.4 seconds for a total of 29.2 seconds. Below are the results of tweaking our UEFI.

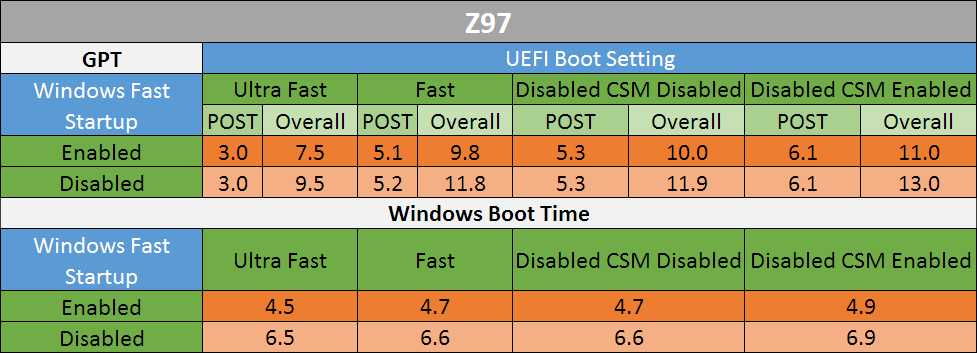

CONSUMER SYSTEM
Default settings POST time was 6.3 seconds and Windows boot time was 5.5 seconds for a total of 11.8 seconds. Below are the results of tweaking our UEFI.
The results speak for themselves. By tweaking our UEFI settings and doing a native UEFI Windows install we were able to speed up our boot time quite a bit. In both systems we were able to achieve our fastest boot times with Ultra Fast UEFI boot setting and Windows fast startup enabled. In terms of POST times we shaved off about 4 seconds in our X99 system and cut it in half in our Z97 system. Windows Boot time was also sped up by three seconds in our X99 system and one second in our Z97 system. These results also go to show how different motherboards
FINAL THOUGHTS
The faster you boot, the faster you work! Microsoft and system developers are working hard to speed up your computing experience. Windows Fast Startup is a great addition to Windows 8 and newer OSes. It helps to speed up boot times quite a bit whether or not you have a native UEFI installation. Combined with Ultra Fast boot mode, your system can boot in what seems to be a blink of an eye. Not only that, another advantage to having a native UEFI installation is that users should experience faster hibernation and sleep resume times as well. So while users will see a great benefit from faster boot times, those with who constantly use hibernation and sleep will also be delighted with ever second saved upon resuming.
From my own experience, Windows used to take up to 15-20 seconds to load from powered off on my laptop. By installing Windows 8 and enabling fast startup the laptop now boots to desktop in under six seconds! When I need to open a document or quickly jot down some notes, having the ability to quickly turn on my laptop and get to work leaves my mind at ease. Also, with reviews and benchmarking happening on a daily basis and constant restarts and system shut downs are a thing, these features help to increase our productivity here at The SSD Review. Every second counts, especially when you are limited on time to finish up a report!
So, in all, if you can, use the latest tech with Ultra Fast boot compatibility and make sure you have Windows fast startup enabled. Every time you start up, you will be happy you did.
