TESTING THE TOSHIBA RD400 M.2 NVME SSD

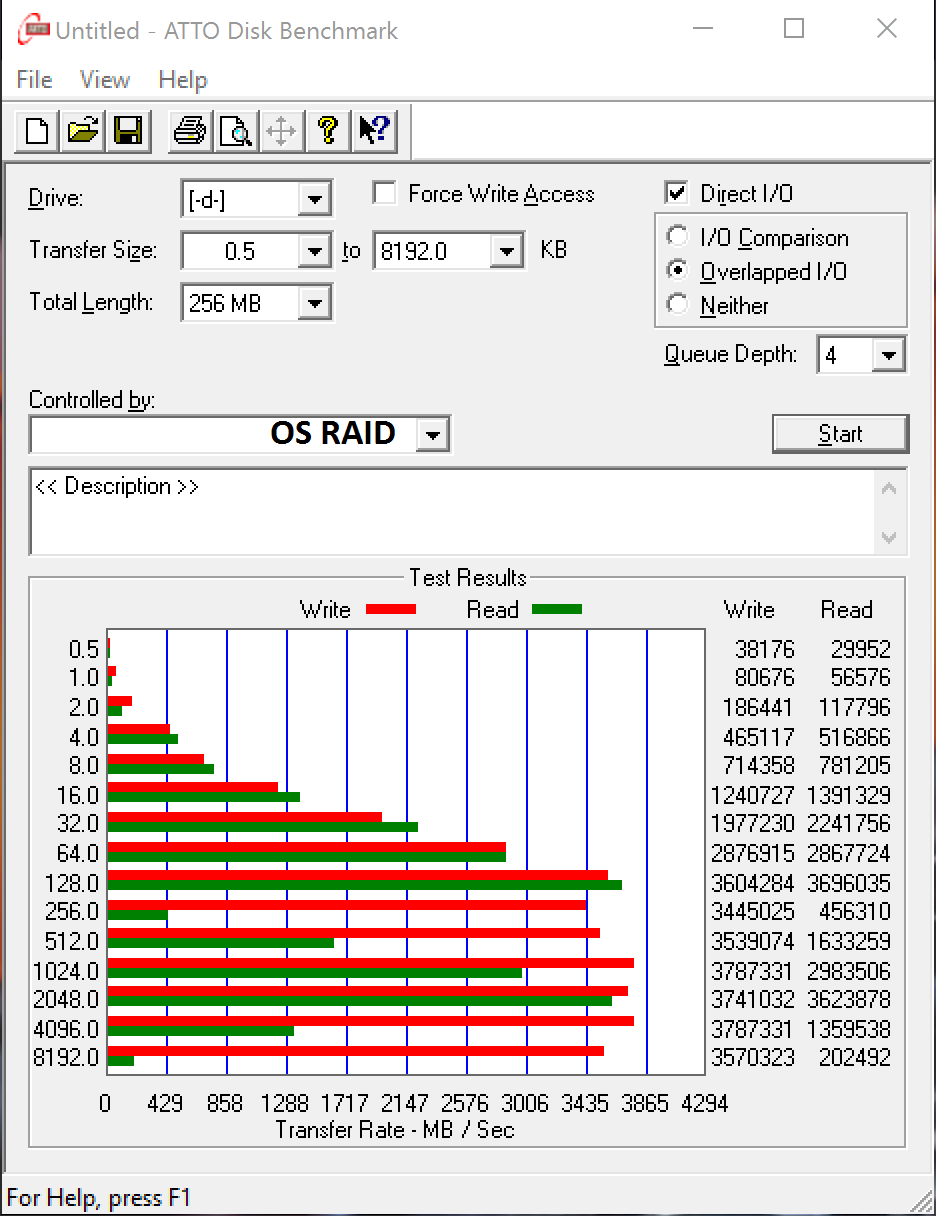

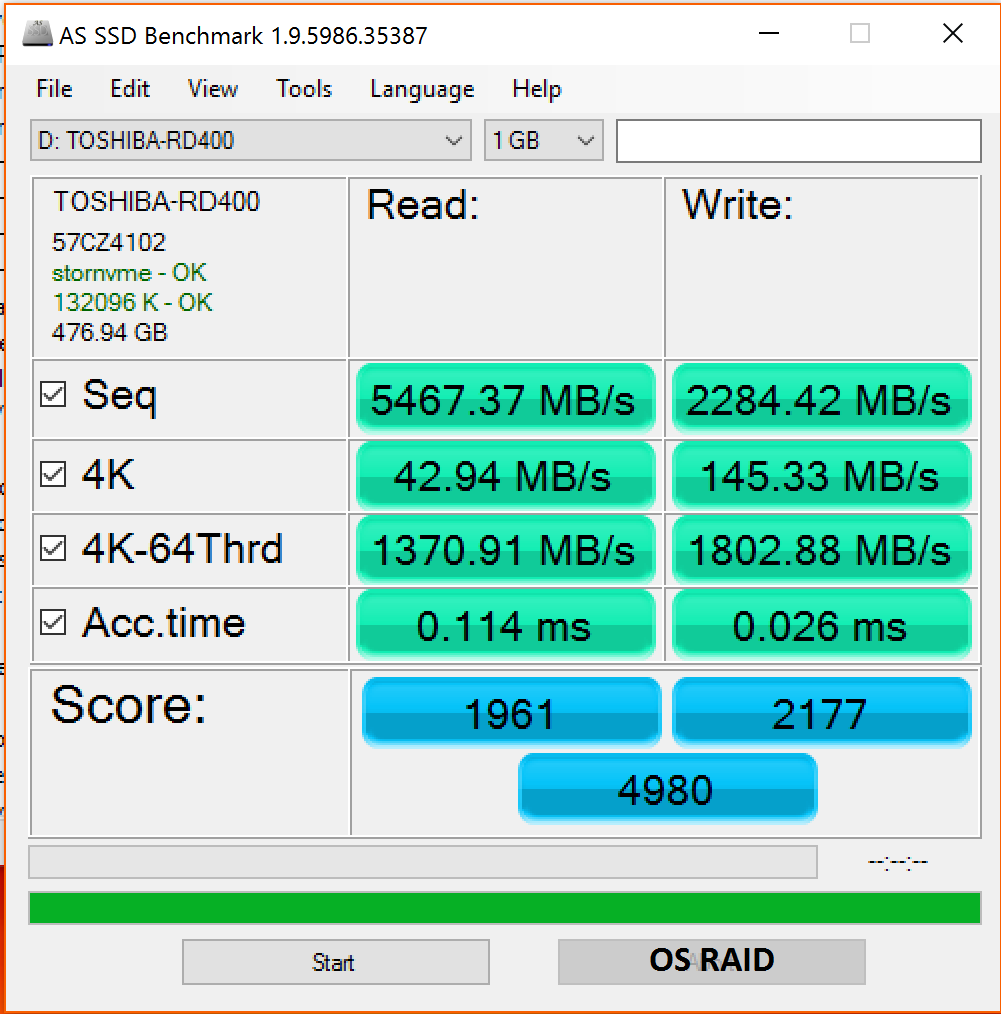

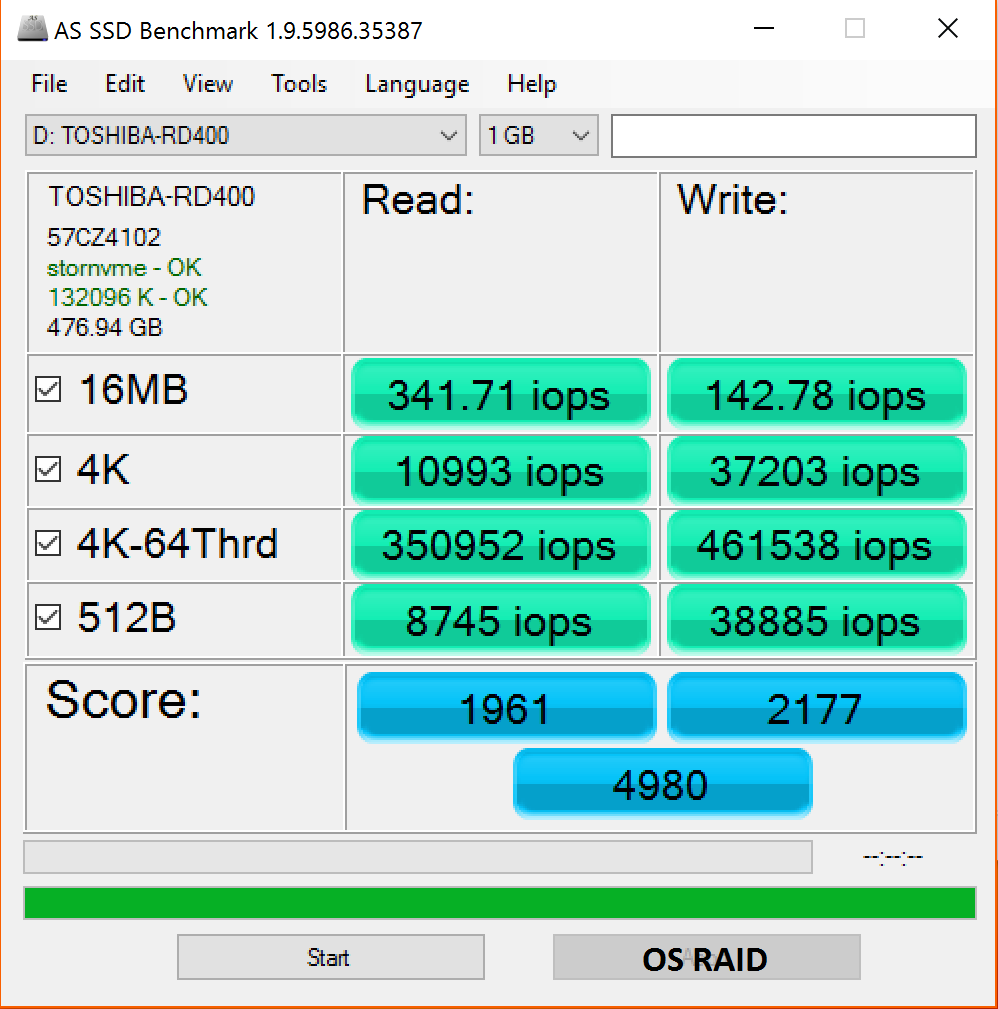

We tested the Toshiba RD400 in both the HighPoint NVMe RAID configuration, and in the OS RAID. The only RAID type in use is RAID0 and we have displayed the OS RAID results on the left with the HighPoint RAID results on the right, or OS above with HighPoint below, depending on the layout.
OS RAID

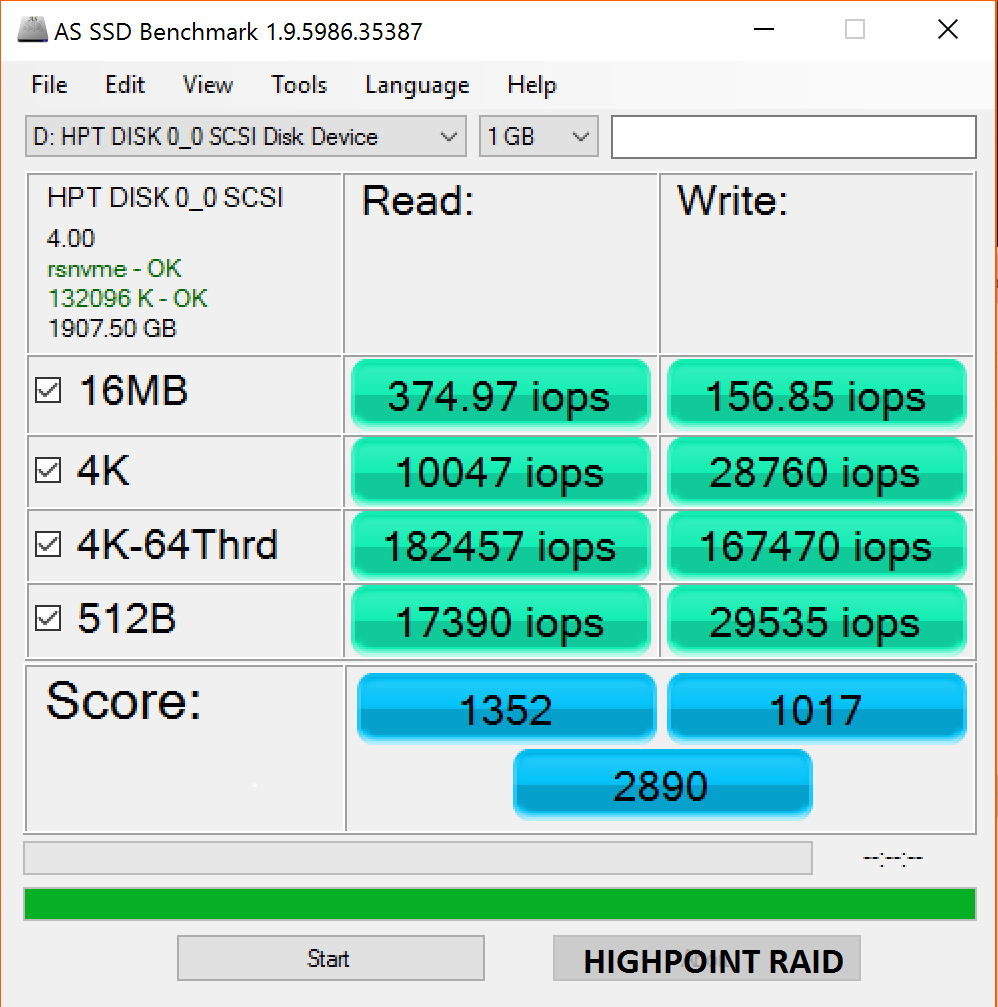

HIGHPOINT RAID

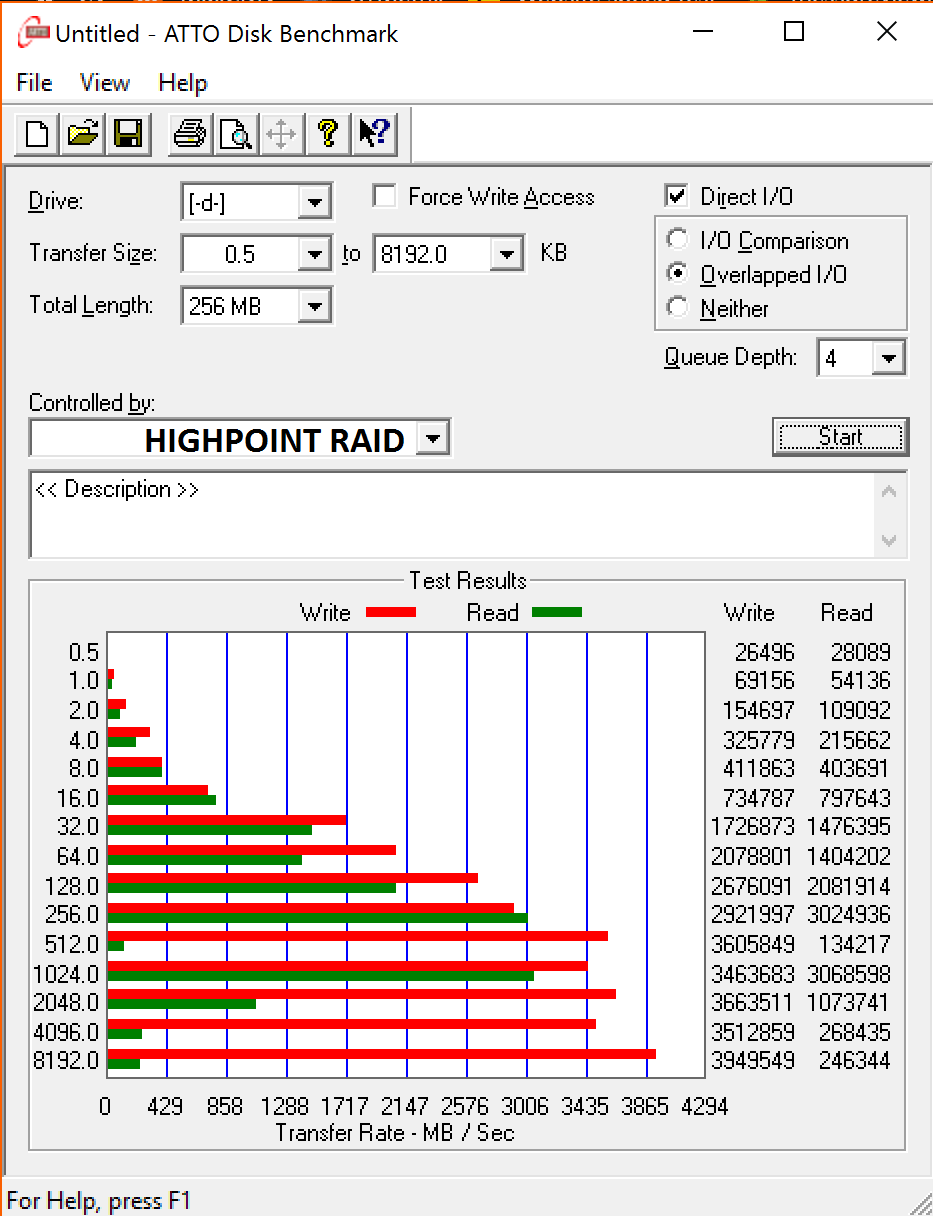

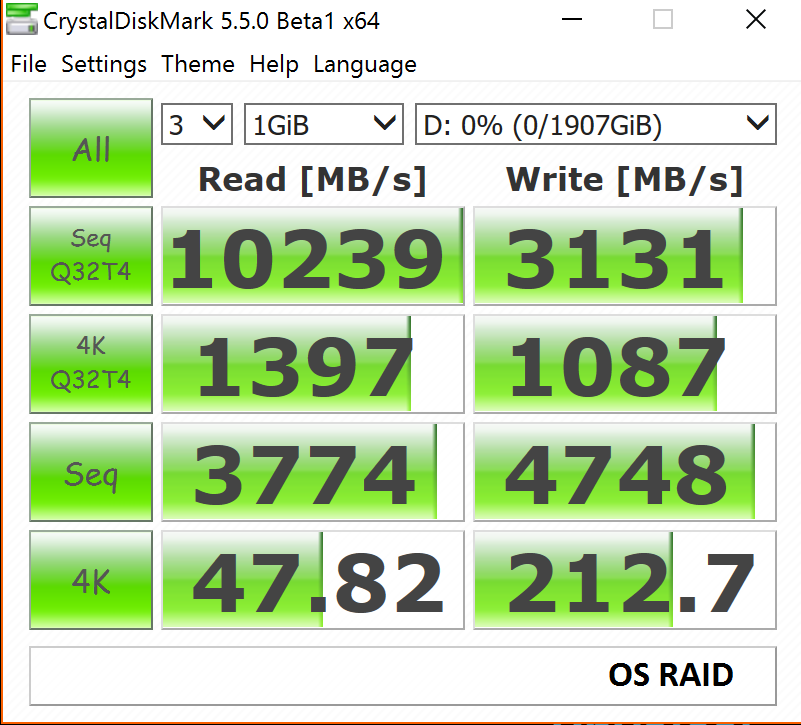

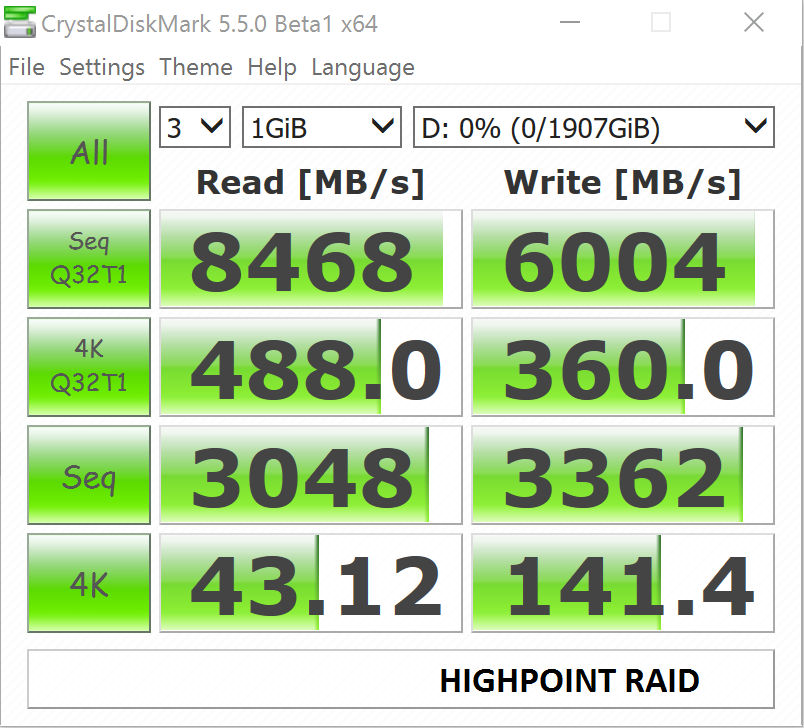

CRYSTAL DISK BENCHMARK VER. 5.5 X64
It is a bit amusing that, while the RD400 OS RAID reached an incredible 10.2GB/s and scaled very well, the better performing device in this case might be the result on the right… depending on the task at hand.

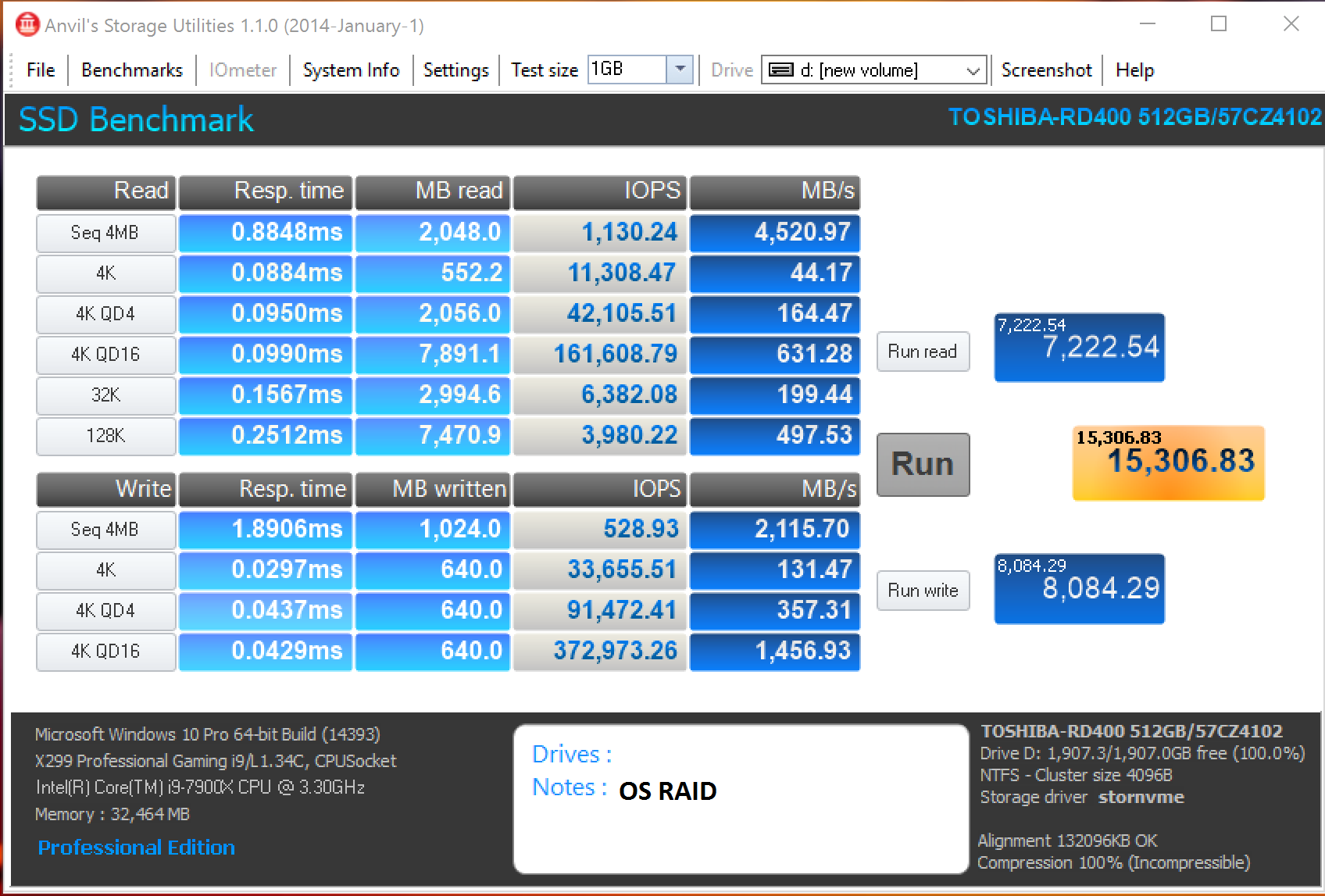

ANVIL STORAGE UTILITIES PROFESSIONAL
OS RAID

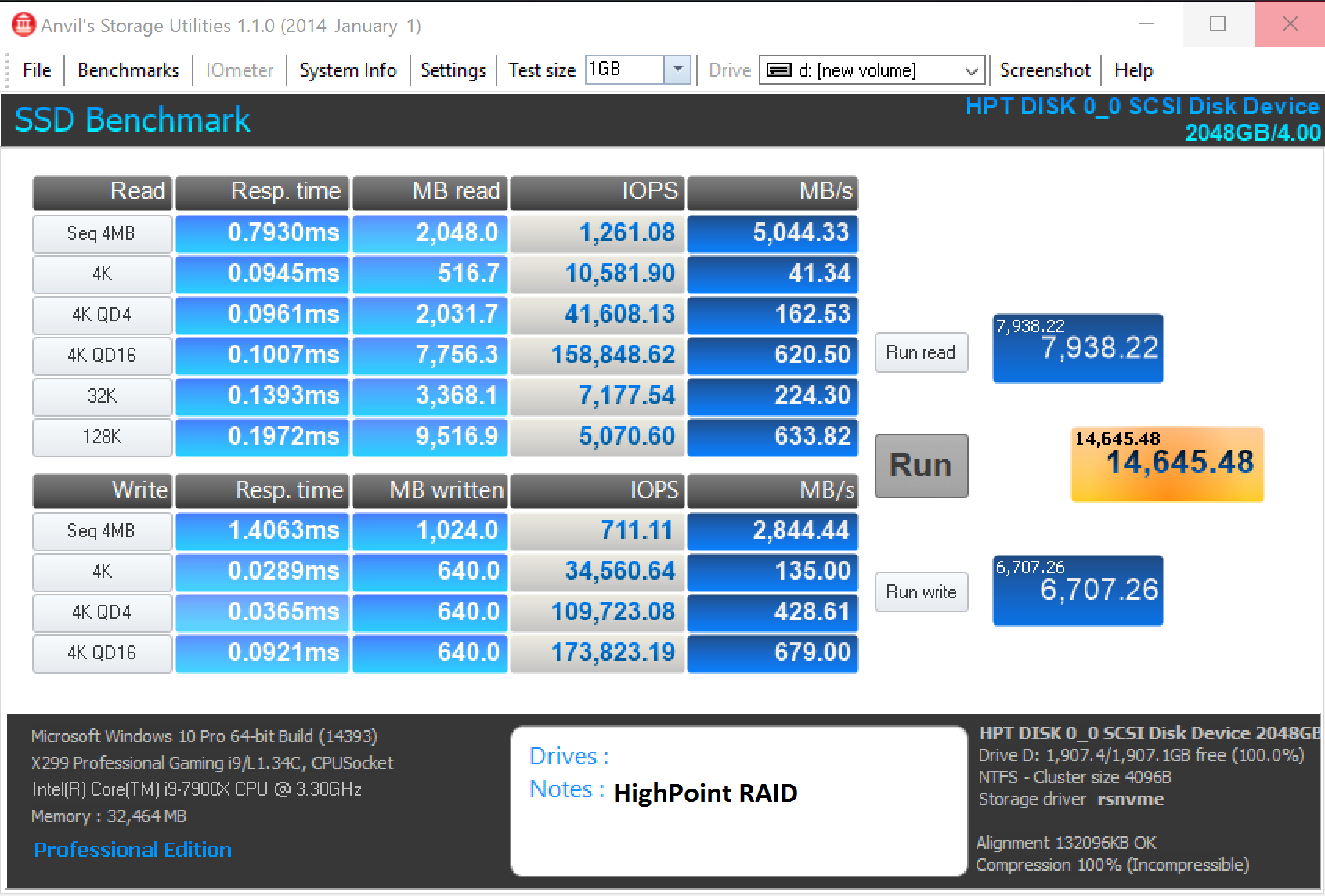

HIGHPOINT RAID
I wonder if a Threadripper build could run this with dual GPUs?
Waiting for it to arrive. I am told it can…and then some.
I heard only intel boards are listed as supported at their site?
Wow, I look forward to your piece on it.
