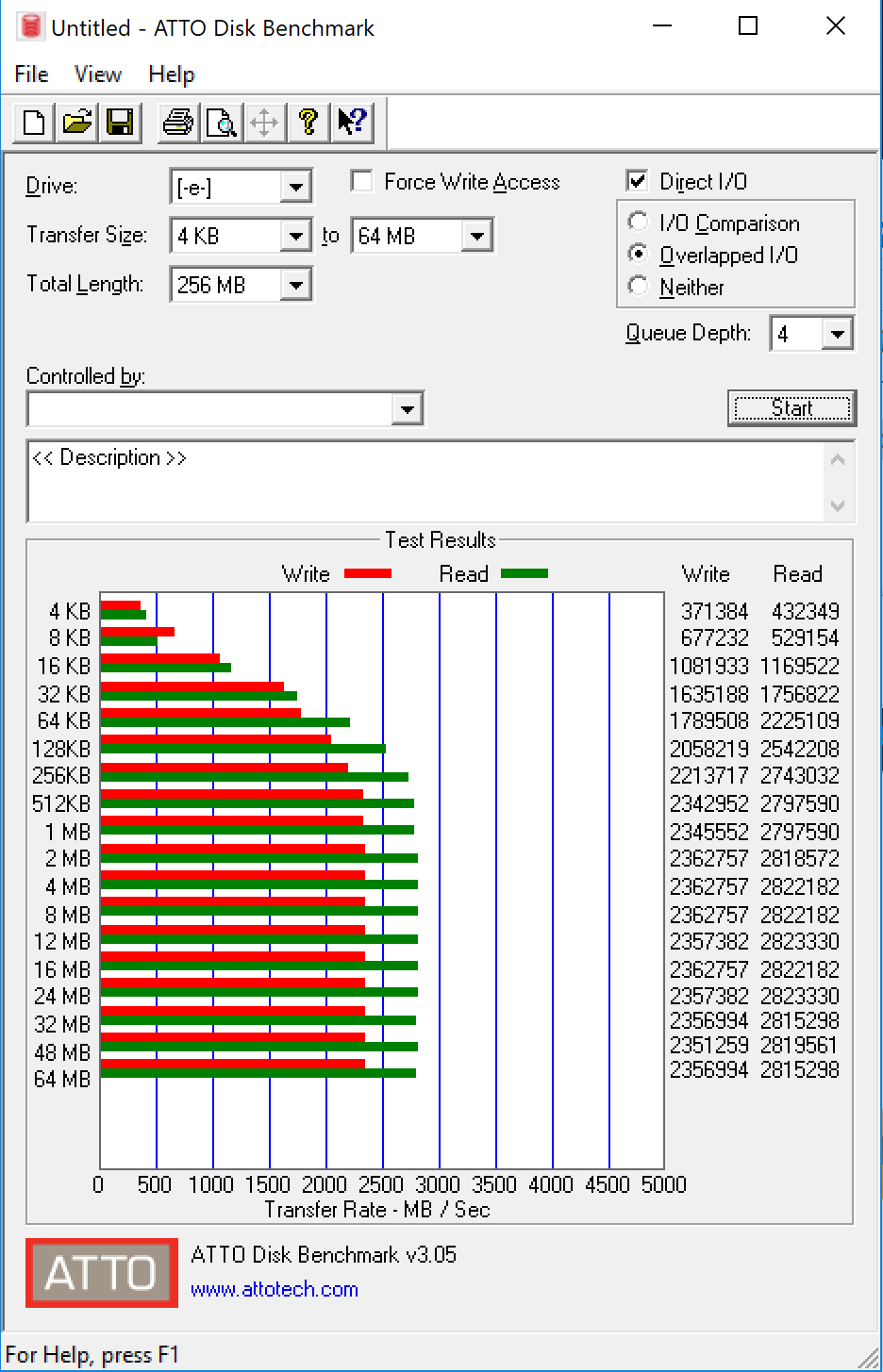

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.
This is an outstanding ATTO result where we see performance increase commensurate with sample test volume increase. The high read result of 2.8GB/s is about as high as it is going to get for Thunderbolt 3. The write performance of 2.3GB/s is much higher than expected and, in fact, both results blow away listed specifications of 2.5GB/s read and 1.5GB/s write throughput.

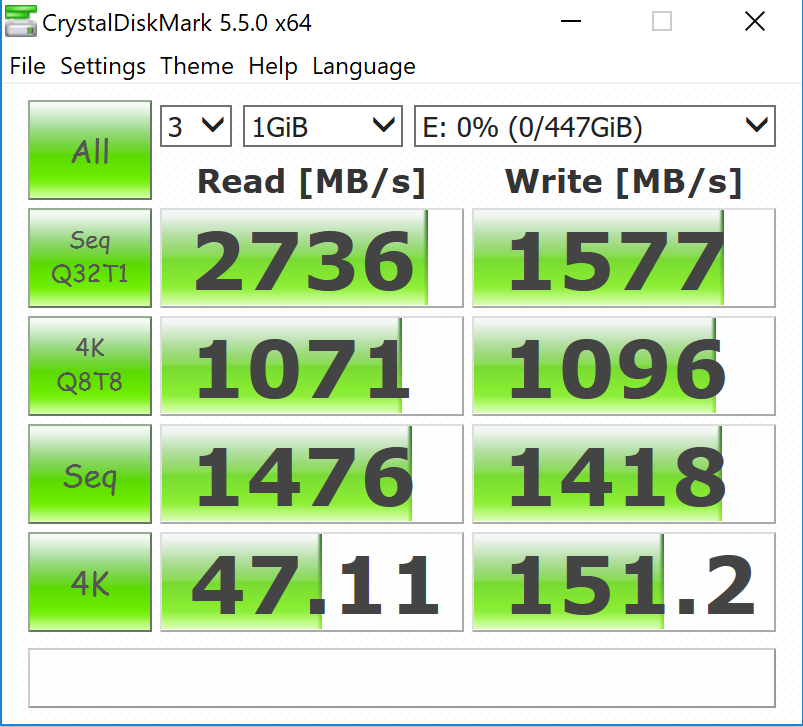

CRYSTAL DISK BENCHMARK VER. 5..5.0 X64
Crystal Disk Benchmark is used to measure read and write performance through sampling of random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.
Once again, these are great results from Crystal Diskmark, remembering that this is a handheld external storage device. This performance has never been seen prior using TB3 from a single SSD solution. The only thing we might have wished for would have been higher 4K results.

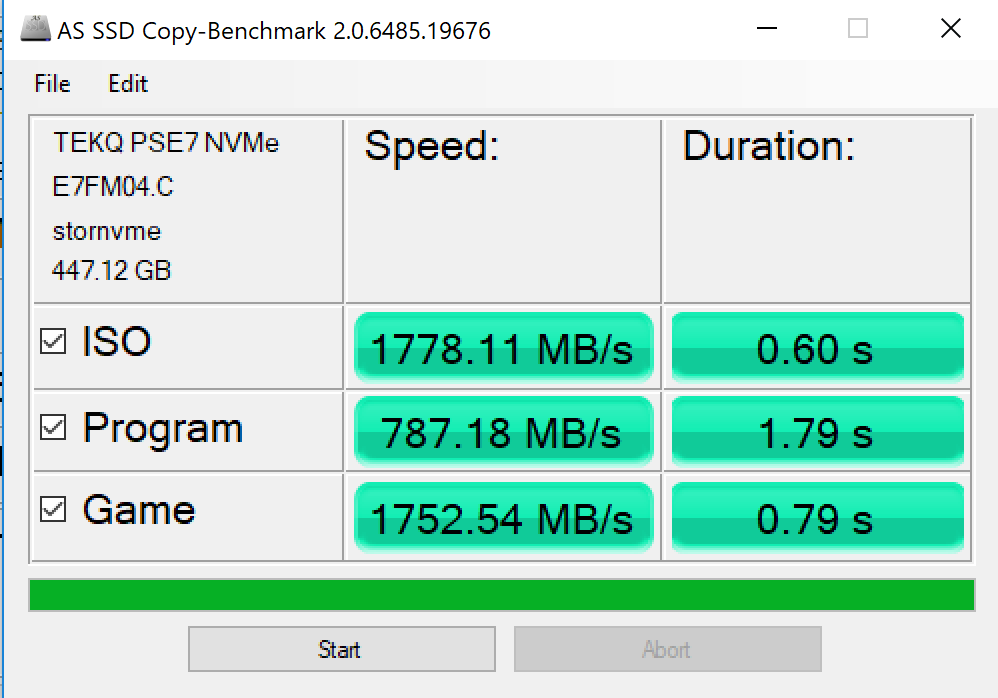

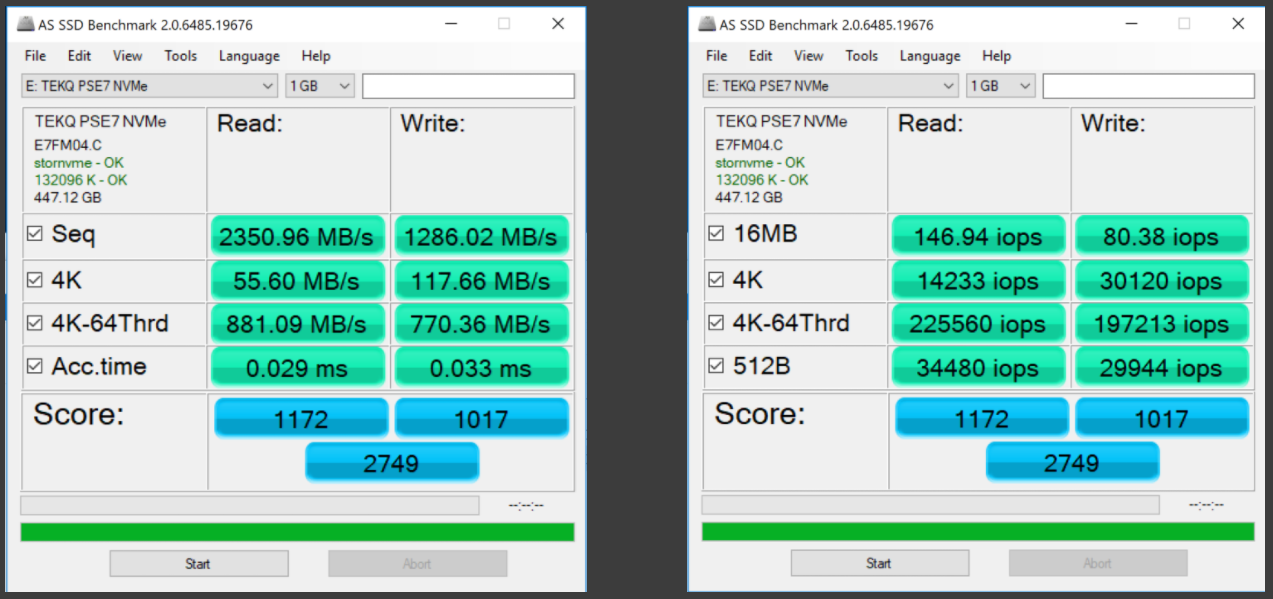

The toughest benchmark available for solid state drives is AS SSD as it relies solely on incompressible data samples when testing performance. For the most part, AS SSD tests can be considered the ‘worst case scenario’ in obtaining data transfer speeds and many enthusiasts like AS SSD for their needs. Transfer speeds are displayed on the left with IOPS results on the right.
These results are consistent of what we might see in AS SSD and this gives us a great look at transfer speeds of different file types. Listed specifications of 300K read and 200k write IOPS are just a bit higher than we see in this result.

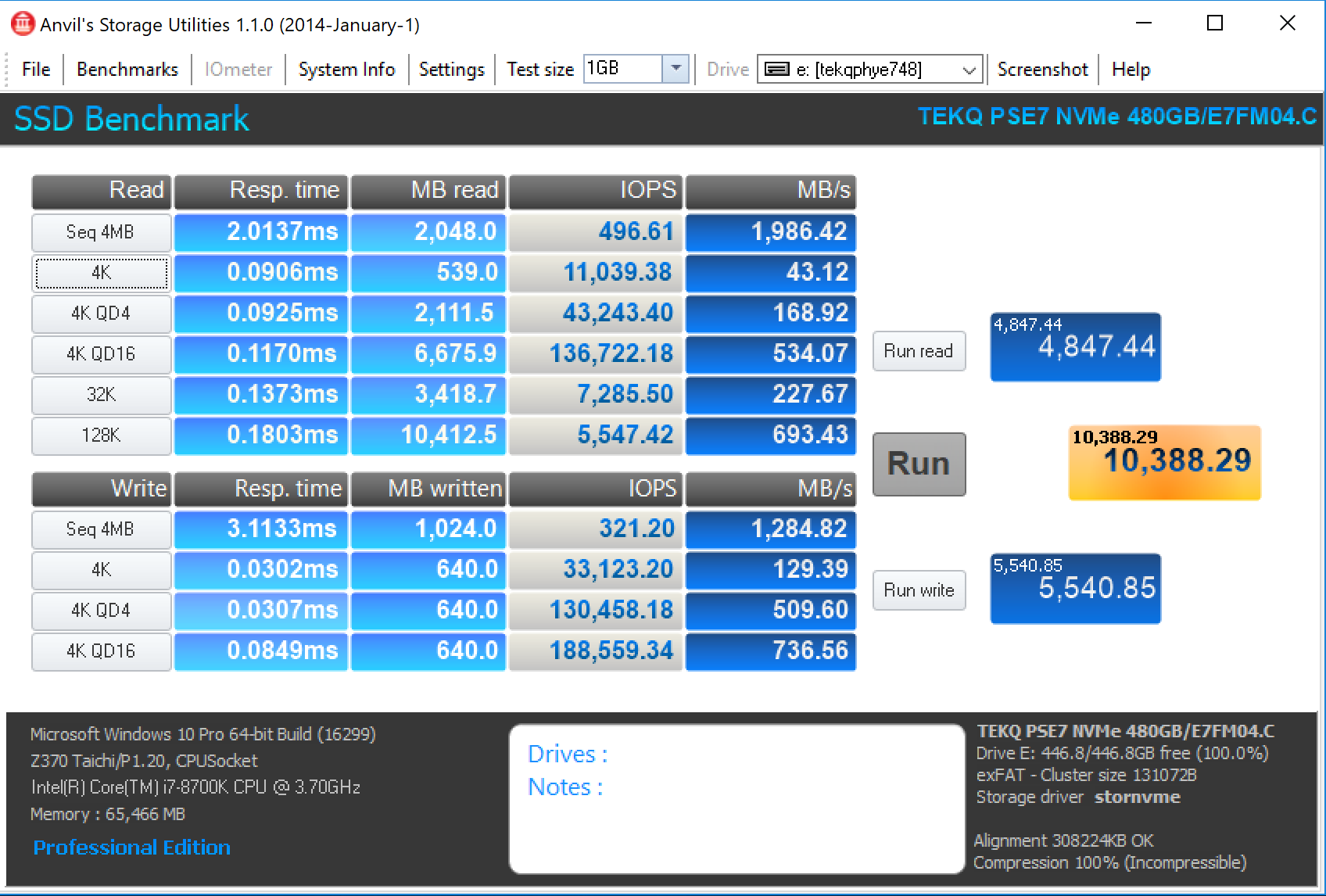

ANVIL STORAGE UTILITIES PROFESSIONAL
Anvil’s Storage Utilities (ASU) are the most complete test bed available for the solid state drive today. The benchmark displays test results for, not only throughput but also, IOPS and Disk Access Times. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.
Good product, I thought about product of this kind, now they need to make it easly serviceable let us the option to buy empty shell and place for another drive to run it in raid.
The key to this SSD is the firmware and that is why what you are saying is not so simple. I have tried 3 other M.2 SSDs in this unit…all higher capacity of course, and they cannot provide consistent benchmark results. This M.2 SSD is matched specifically with this product having specific firmware. I even have same drive same capacity…nope.
might be complicated to implement, but that what separates the good products from the great ones.
Agree… well except there is only one of these in the world right now.
Hi Eliad and Les,
Alfred here, the project manager of TEKQ. In fact we do have empty shell solutions but right now only accessible to business client. We didn’t know there was such a big demand for this when it comes to personal use. I’ll let the developing team know your request. It’s so interesting to see you disassemble this little thing LOL.
You are more than welcome to send an empty shell solution this way for testing if you like. I have several M.2s and get them regularly. So far, I have tried the 960 Pro 2TB, OCX RD400 and the original oem Toshiba 1TB drive…without much luck in the Rapide I am afraid.
