TEKQ RAPIDE DISASSEMBLY AND COMPONENTS

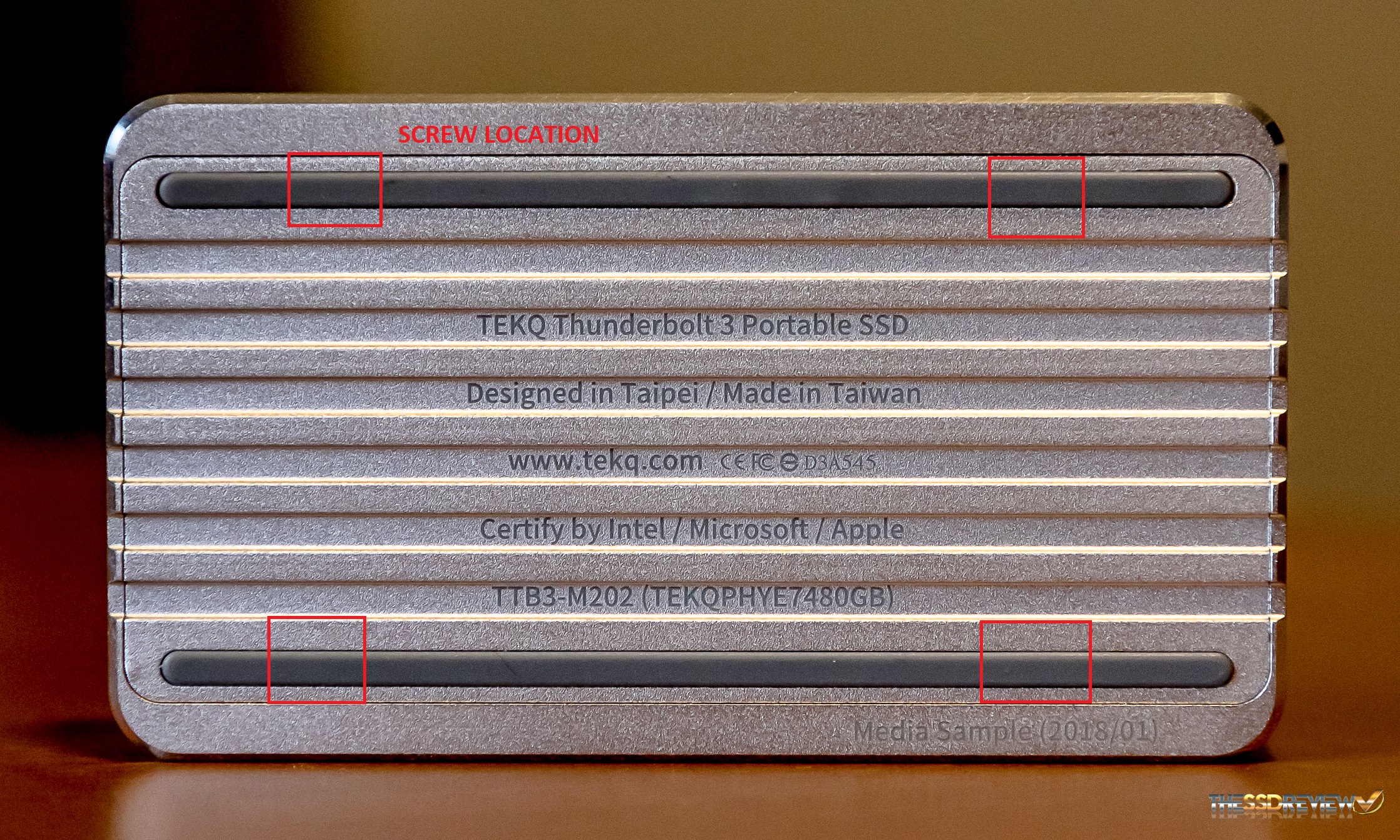

Disassembly of the Tekq Rapide is accomplished by carefully peeling the two rubber rails away on the bottom of the unit and then removing four of what are easily the smallest screws we have ever seen. Removal of the base plate followed which wasn’t as easy as we figured. We thought using a tool to pull up through the screw hole might work but nope… We had to pull on a ledge from the top center of the device to see it come off. The base plate is recessed and fits exact, the result of precise CNC machining.

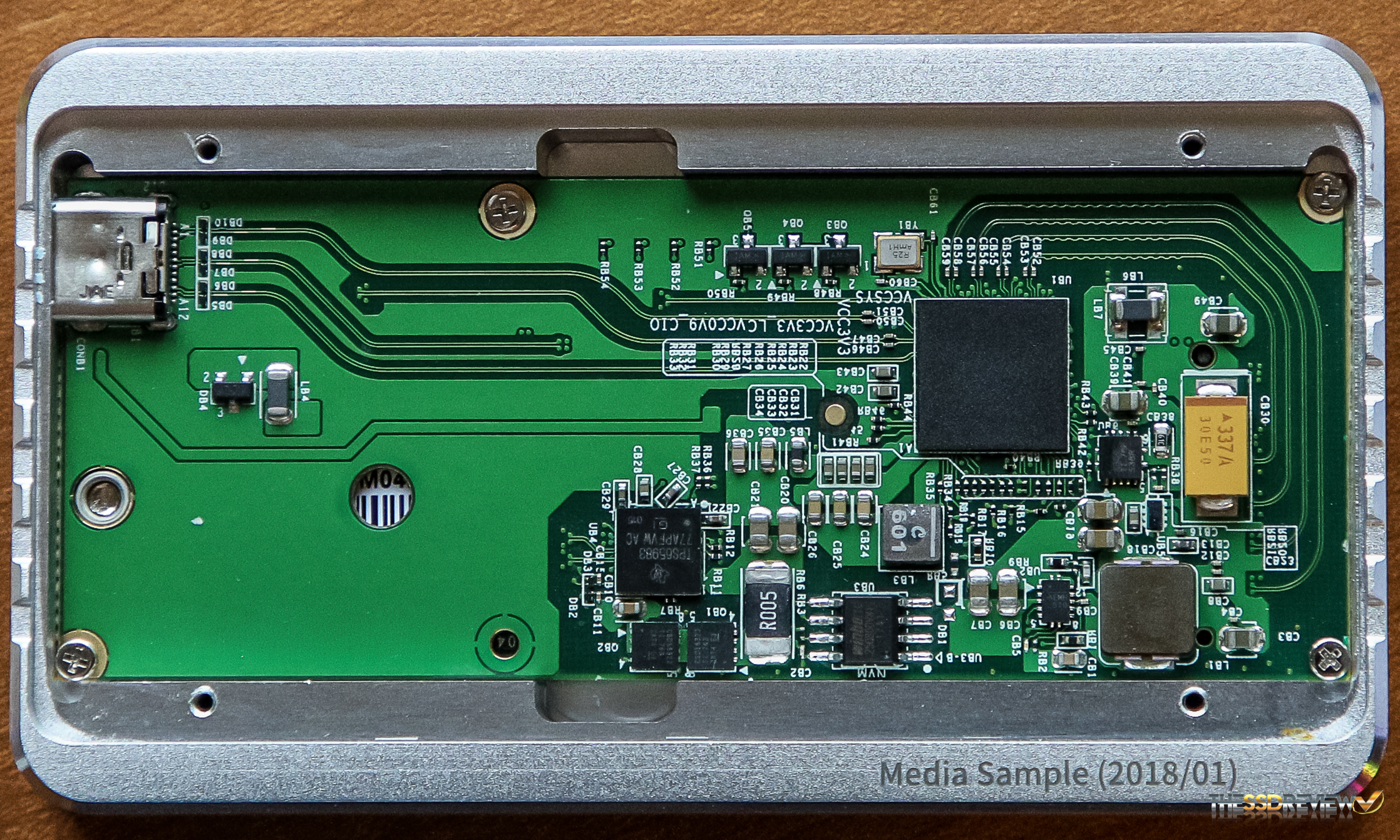

Once removed, there was access to the PCB next, again removable by four screws, and then the SSD was found on the base of that green PCB. This picture provides a great view of just how nice the aluminum CNC cut is on this portable SSD. The large black module on the right side is the Intel Gen 3 JHL6340 Thunderbolt 3 controller which provides up to 40Gbps bi-directional data transmission and reversible connectivity. Theoretically this might see as high as 5GB/s throughput, but for the ThunderBolt 3 overhead and Display Port needs. The most we have seen from Thunderbolt 3 in reality is somewhere in the area of 2.8GB/s throughput.
On the inside base of the Tekq Rapide is a strip of blue thermal padding which seats itself against the SSD controller, cache and memory when the green PCB is in place. Heat dissipates from the SSD, via the thermal padding to the outside of the device where the fins cool the unit. Similarly the base plate also contains two pieces of thermal padding for the Intel TB3 controller and the port housing.

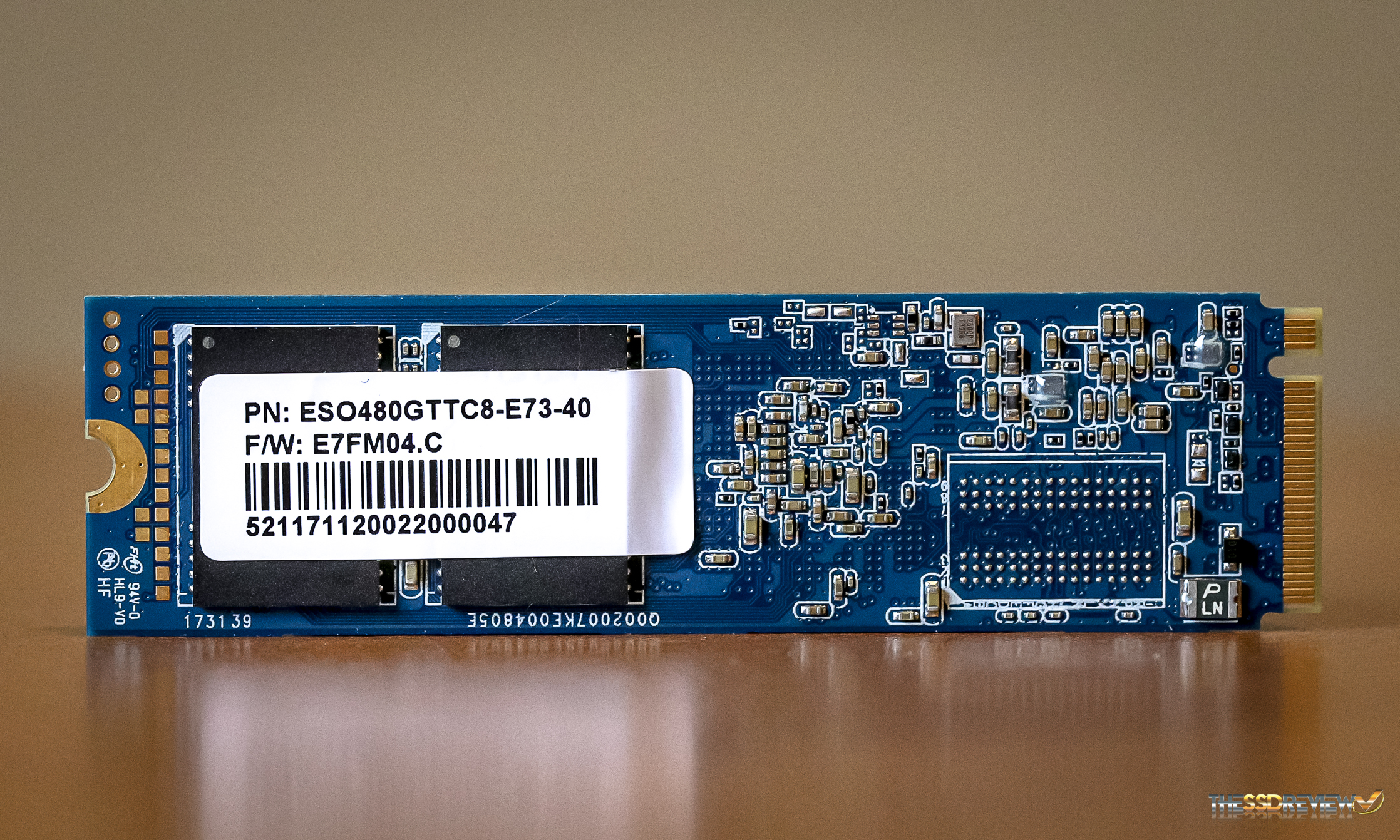

The SSD inside the Rapide is the spitting image of the Kingston KC1000 M.2 NVMe SSD, but for the firmware as we are told. It is officially the Tekq PSE7 NVMe SSD. If you are not familiar with the KC1000, you just might want to check out our report on the Kingston DC1000 enterprise SSD. That SSD is still the world’s fastest PCIe NVMe AIC SSD at over 7GB/s throughput and one million IOPS and contains four KC1000 M.2 NVMe SSDs.
The Tekq PSE7 is a 2280 form factor PCIe 3 NVMe SSD which contains the 8-channel Phison PS5007-11 E7 NVMe controller. There are also four modules of Toshiba 15nm 128GB MLC NAND flash memory, numbered TH58TFT0DFLBA8H.
This memory, albeit not the newest, holds a great reputation and was formerly seen in the Corsair MP500 NVMe SSD, which can be seen here and also resembles our SSD today, right down to the 256MB NANYA DRAM cache. This SSD has a 512GB RAW value and provides the user with 447GB of storage space when formatted.
