Maxiotek MK8115 Controller Preview – MLC & TLC NAND Put To The Test

CRYSTAL DISK BENCHMARK VER. 5.2.1 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.

FW 0208a (TLC)

MK8115 TLC CDM

FW 0206b (MLC)

MK8115 MLC CDM

Crystal Disk Mark’s results are consistent with what we are seeing in today’s SSDs.  Even the low 4k random write result is as can be expected from such a value oriented SSD.

AS SSD BENCHMARK VER 1.9

The toughest benchmark available for solid state drives is AS SSD as it relies solely on incompressible data samples when testing performance. For the most part, AS SSD tests can be considered the ‘worst case scenario’ in obtaining data transfer speeds and many enthusiasts like AS SSD for their needs. Transfer speeds are displayed on the left with IOPS results on the right.

FW 0208a (TLC)

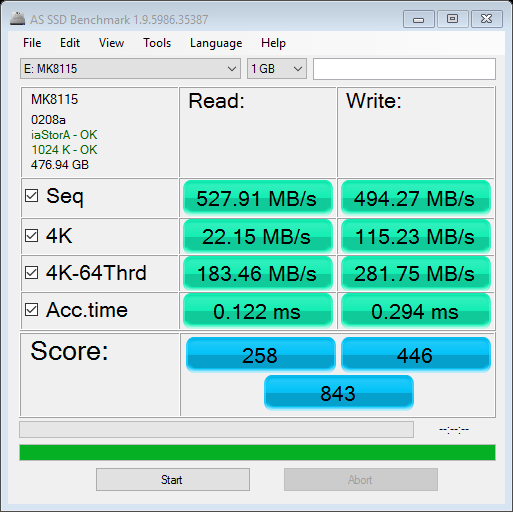

MK8115 TLC AS SSD

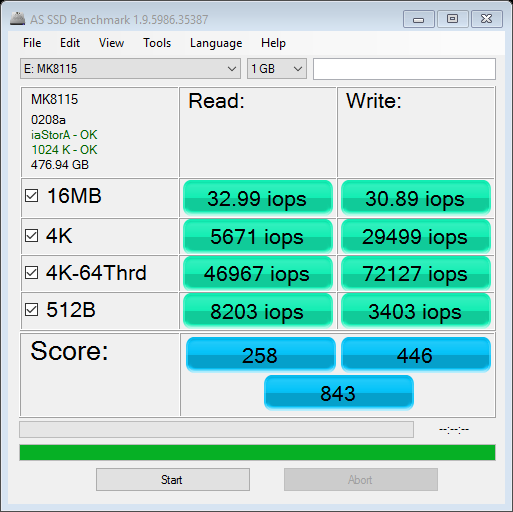

MK8115 TLC AS SSD IOPS

MK8115 TLC AS SSD Copy

FW 0206b (MLC)

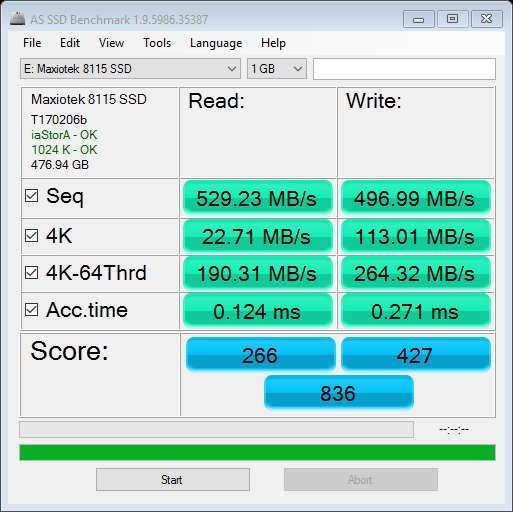

MK8115 MLC AS SSD

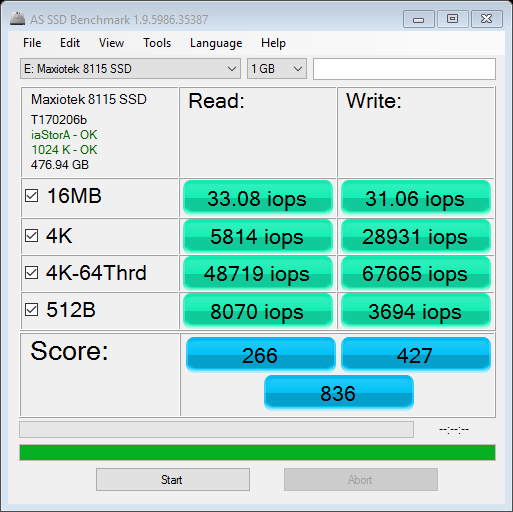

MK8115 MLC AS SSD IOPS

MK8115 MLC AS SSD COPY

ANVIL STORAGE UTILITIES PROFESSIONAL

Anvil’s Storage Utilities (ASU) are the most complete test bed available for the solid state drive today. The benchmark displays test results for, not only throughput but also, IOPS and Disk Access Times. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

FW 0208a (TLC)

MK8115 TLC ANVIL

FW 0206b (MLC)

MK8115 MLC ANVIL
