Samsung 830 Series SATA 3 512GB SSD Review – Amazing Performance and an Unbeatable Toolbox

REPORT ANALYSIS AND FINAL THOUGHTS

Samsung SSD Magician is unquestionably the most full featured SSD management tool available. It’s may not be a big enough deal by itself to sway many potential customers, but Samsung owners will be glad to have it nonetheless. It’s all wrapped in an attractive and easy-to-use package, and it simplifies and speeds day to day maintenance tasks. When combined with the comprehensive desktop/laptop installation kits, it definitely presents a compelling package of value-adds.

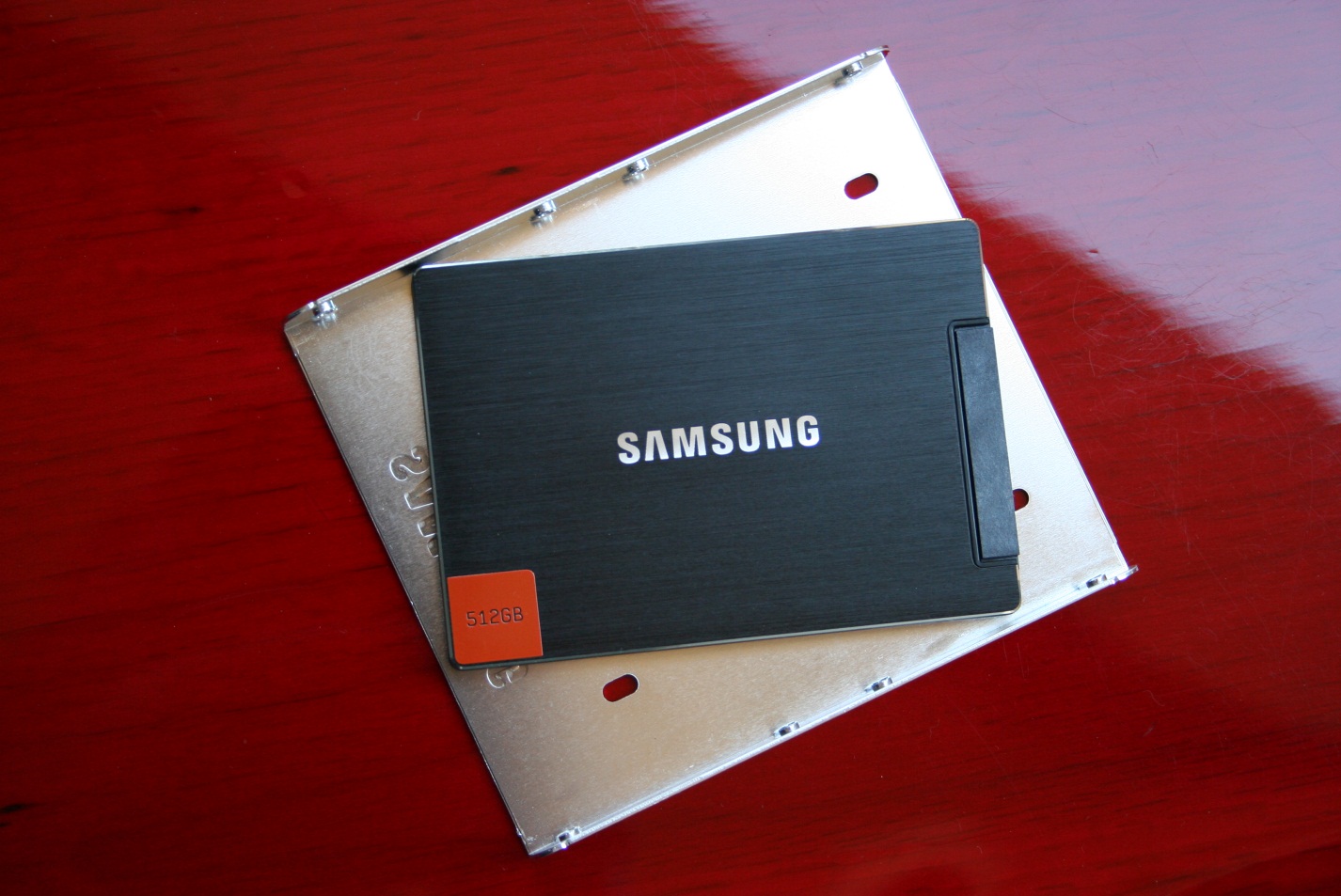

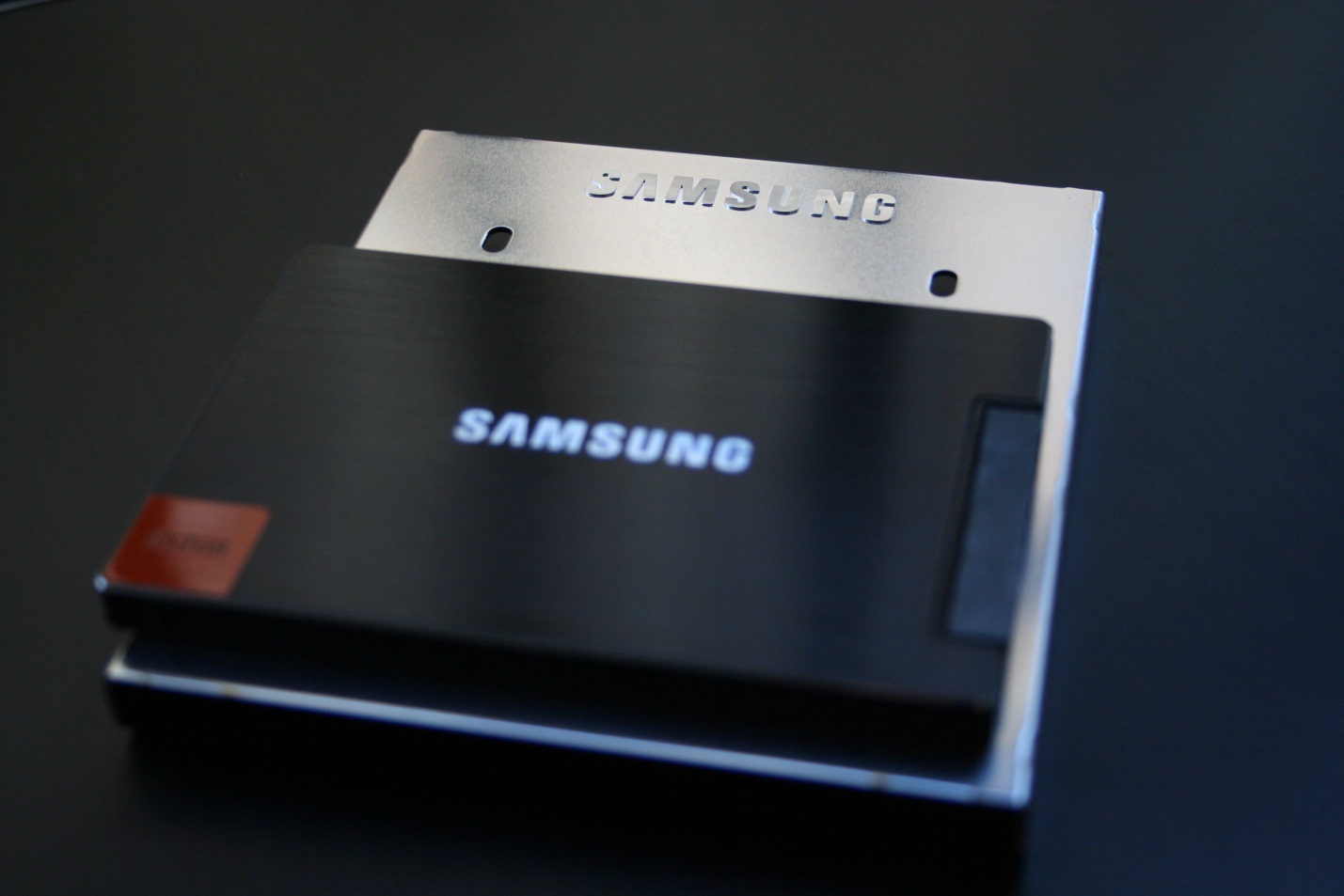

The drive itself is attractive with it’s black, brushed-metal top insert and makes for a nice presentation when exterior packaging is first opened. The 830 is definitely pretty, and it’s un-boxing feels more like a high-end consumer device more than a system component. But if the drive inside that fancy packaging isn’t competitive, no combination of extras and un-boxing experience is going to matter. All-show-and-no-go is not going to work today.

Fortunately for the 830, it is competitive with the upper echelon of the consumer SSD market. It is not the fastest drive out there at the moment, but it can hang at the top with today’s front-runners, even beating them in some areas. More importantly, the 830 is a shot across the bow from Samsung at today’s less vertically-integrated firms. Owning the fabrication and foundry gives a huge advantage to Samsung over it’s competitors in key areas, especially where economics are concerned. Samsung has the resources to thoroughly vet and validate every bit of the drive, and the 830’s adoption by the largest OEMs for high-end laptops and mobile workstations is a tribute to that capability.

In short, nothing has really changed from the time the 830 was released to the consumer market. It’s still one of the fastest, still has an exceptional track record, and is still a desirable product even as newer drives have come after it. The installation kits do add quite a bit of value, even if don’t avail yourself of the Batman download (though it is a critically acclaimed title). That the Korean giant though to include a game with their SSD is great, but it’s even better that they included a good one.

blankThe 830 is fast everywhere. It has tremendous write speed and great read speed. Random performance is quite good too, especially QD1 random writes which eclipse much of the field. It would be nice to see Samsung bump the warranty up from 3 to 5 years to maintain parity with a few of the other 2xnm SSDs, but you do get an extra month of warranty for registering the drive with Samsung support.

Right now, the 512GB can be found for ~$670. There are few less expensive options at 480GB and 512GB, but volatility in pricing does change the landscape around quite a bit. The 512GB does maintain parity on a price-per-GB basis with the rest of the 830s and is very competitive overall on price, routinely selling between $640 and $710 in America.

blank

Samsung is poised to be an even bigger player than it already is, bringing fabrication expertise and specifically-tailored components. The 830 is just the opening salvo, a proof-of-concept which probably has the headroom left in it for several iterations before a complete redesign. It is one of the more interesting drives on the market, and somewhat unique in a field which is looking more and more homogenous. The 830 certainly isn’t boring, and it comes with some of the best installation and support software around (in addition to a thoroughly entertaining game). That, and the exceedingly pretty chassis serve to set the drive apart in crowded market. But if it’s what’s inside that counts, then the 830 has a lot going on there, too.

See Samsung 830 SSD Prices at Amazon.com.

FOLLOW THE DISCUSSION IN OUR FORUMS!

User Rating: Be the first one !

12 comments

  1. blank

    nice review!

  2. blank

    512gb is too much. Seriously you can get 128gb SSD. All of your games programs apps will be on that drive. My “documents” musics videos put them on tb drive.

  3. blank

    I love this drive. I have one in my Lenovo T420s and use it t run two Virtual Machines off it. Amazing performance.

    However, one thing is important to highlight. Similar to Intel OEM drives, Samsung does not provide support or firmware for OEM drives. They will refer you to OEMS (Dell etc) whenever you need support. Fixes in retail firmware will only reach OEMs when the issues these fixes treat are serious enough. For Samsung drives this has become painfully obvious when PM800 owners had to resort to hacking their drives into retail firmware in order to support TRIM. That very same goes for the PM830. The latest Samsung retail firmware is not available for OEM drives and SSD Magician does not recognize OEM drives as “Genuine Samsung”.

    I love the PM830 512Gb drive, but this is an aspect that Samsung really needs to sort!

    • blank

      Not exactly… Intel DOES support their OEM drives with firmware updates, in my experience. I have an x-18m 160 GB OEM from HP that is easily supported and updated with Intels Toolbox…and if I’m not mistaken, Crucial/Micron also allows firmware updates to their OEM drives.

      Samsung should do the same…

  4. blank

    DELL has a poor technical support.
    To be worse DELL refers to Samsung, and Samsung refers to DELL.
    A large serious company … and the people doing the jokes
    . More can be read here:
    https://en.community.dell.com/owners-club/alienware/f/3746/t/19431377.aspx?PageIndex=2
    https://forum.notebookreview.com/alienware-m17x/638053-updating-samsung-pm830-firmware-2.html
    I’m going to do its part, Dell and Samsung anti-advertising.
    According to me they deserve. I also recommend users also overwhelm DELL technical support e-mails Samsung also.
    Otherwise, both companies will not do anything with the problem.

  5. blank

    The Muss: yes, while 512GB is more then enough for the average user, this drive serves as an excellent replacement for mechanical disks in storage arrays and in server computing. My company uses the 256GB and 512GB model drives in our servers and storage arrays and the performance and value you get is unmatched.

  6. blank

    Hey guys I just did a speed test of the Samsung 830 SSD on my 2009 MacBook Pro check it out! https://www.youtube.com/watch?v=gZJ-pPeE5lA&list=UUHjLWNIoRDcgGEa1cLki1Fg&index=1&feature=plcp

  7. blank

    This softwareSSD MAGICIAN supports XP which made my purchase happen.

  8. blank

    Hello, I’ve bought this SSD a few weeks ago and has tried a few benchmarks with it, and found that my 4k-64 thread read is only 82 MB/s in AS SSD benchmark rather than close to the 267 MB/s as shown in this review. What could be the problem?
