PCMARK 10 FULL SYSTEM STORAGE BENCHMARK
PCMark 10 Storage Benchmarks produce an overall score as a measure of drive performance. Comparing devices is as simple as comparing scores. The tests also measure and report the bandwidth and average access time performance for the drive. Each test uses traces recorded while performing real-world tasks such as booting Windows 10, starting applications such as Adobe Photoshop and Illustrator, working with applications such as Microsoft Excel and PowerPoint, and copying several large files and many small files.

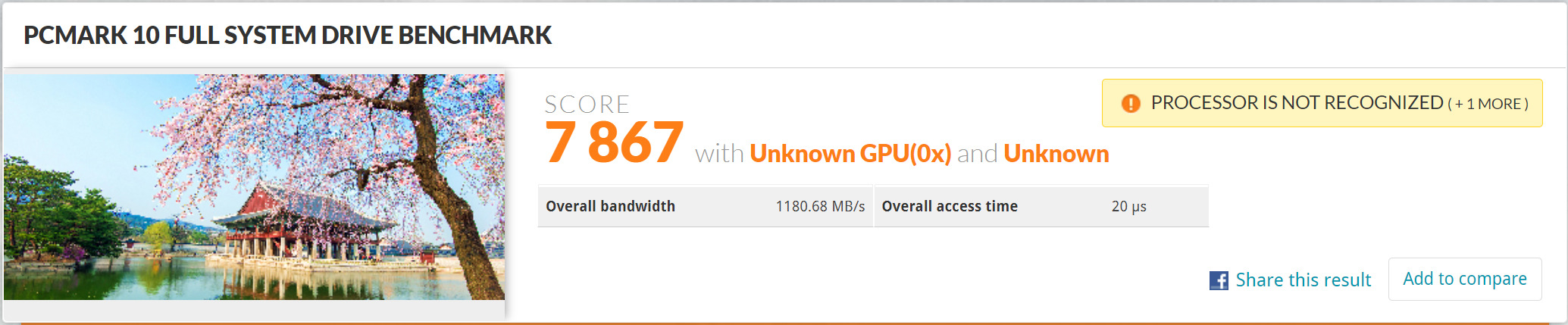

INTEL Z590 TEST BENCH

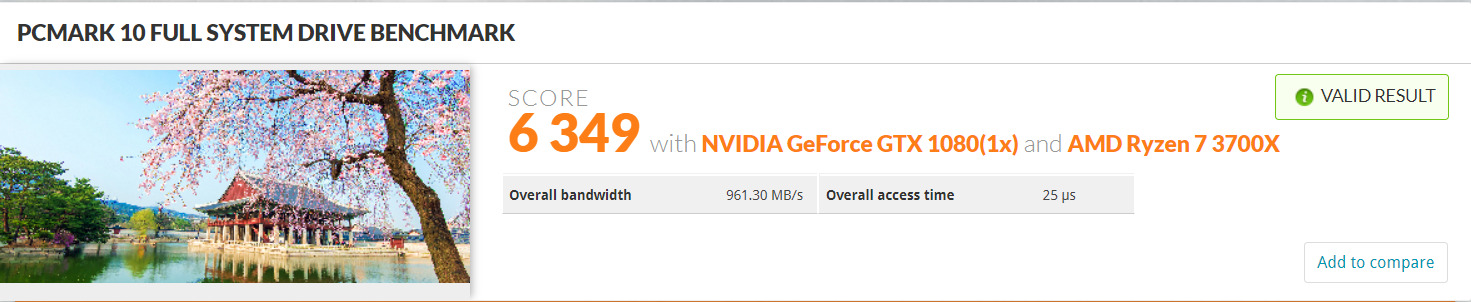

AMD X570 TEST BENCH
PCMARK 10 QUICK SYSTEM BENCHMARK
The Quick System Drive Benchmark is a subset of the Full test and is more representative of typical daily usage to show what would be expected regarding hybrid SSD performance on a day-to-day basis.

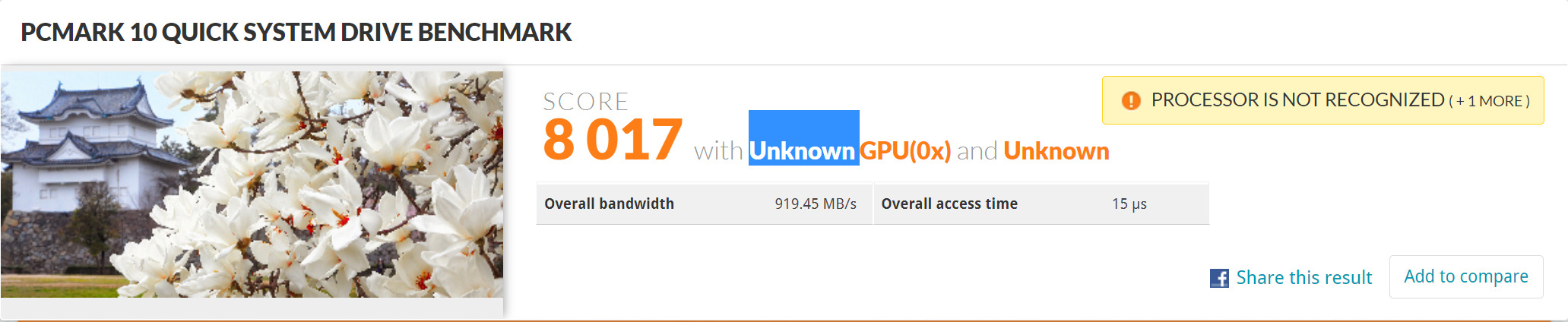

INTEL Z590 TEST BENCH
AMD X570 TEST BENCH

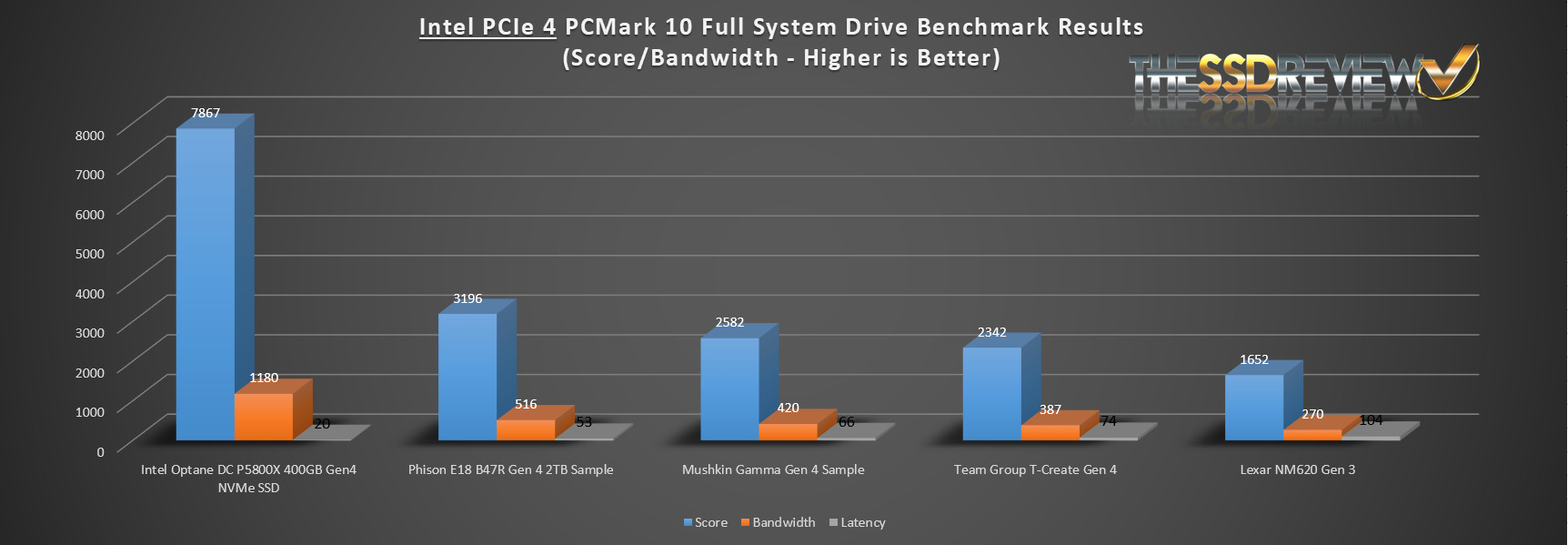

PCMARK 10 FULL SYSTEM COMPARISON CHART
For our Test Comparison today, we have only completed recent Gen 3 and Gen 4 SSDs that had been tested on our newest Intel 11th Gen Z590 PCIe 4 Test Bench. Of particular interest is how lower latency mixed with performance correlates to better overall performance.

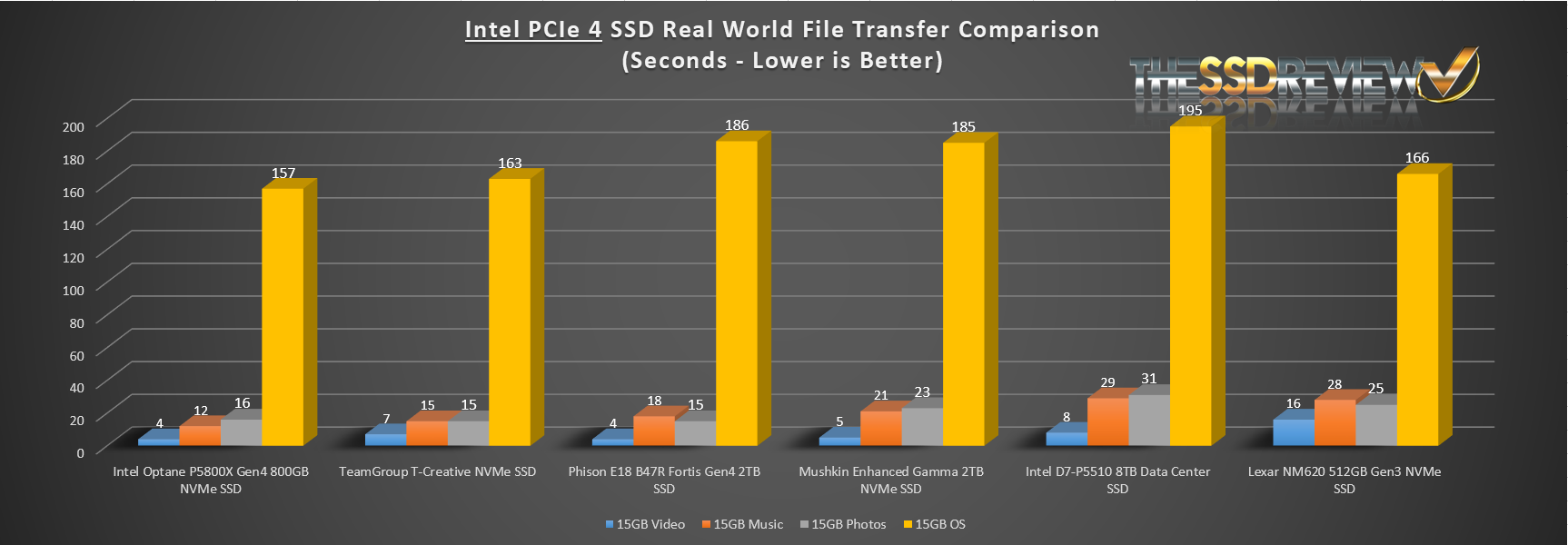

TRUE DATA TESTING THE INTEL OPTANE DC P5800X NVME SSD
For our True Data Testing, we simply loaded 15GB video, music, photo and OS files onto the Intel Optane 400GB P5800x and copied the data to a new folder on that same disk. These Test results reflect Tests only completed on ouir newest Intel Z590 Test Bench.
SUSTAINED FILE TRANSFER
We wanted to demonstrate exactly what the Intel Optane P5800X was capable of as compared to another high end Gen4 SSD when it came to large file transfers. For the P5800X, we created a 425GB folder of 8K files to see if transfer speeds would drop at all during the transfer, as would be normal in any typical SSD. This was our result.
As a means of comparison, we thought we might do same with our Sabrent Rocket 4 Plus Gen 4 4TB System Drive which is running and performing as it should. This SSD is considered one of the best consumer/enthusiast SSDs in the market today. The file size is a bit smaller as our only purpose is to generate how a similar transfer looks when a long transfer takes place with NAND, vice Optane memory.
As we can see, there is an extended period of data transfer above 2GB/s before it falls to almost half of that for the remainder of the transfer. This is typical for all modern NAND flash memory SSDs and even more prominent as we have progressed from TLC to QLC memory.
TEMPERATURE MONITORING

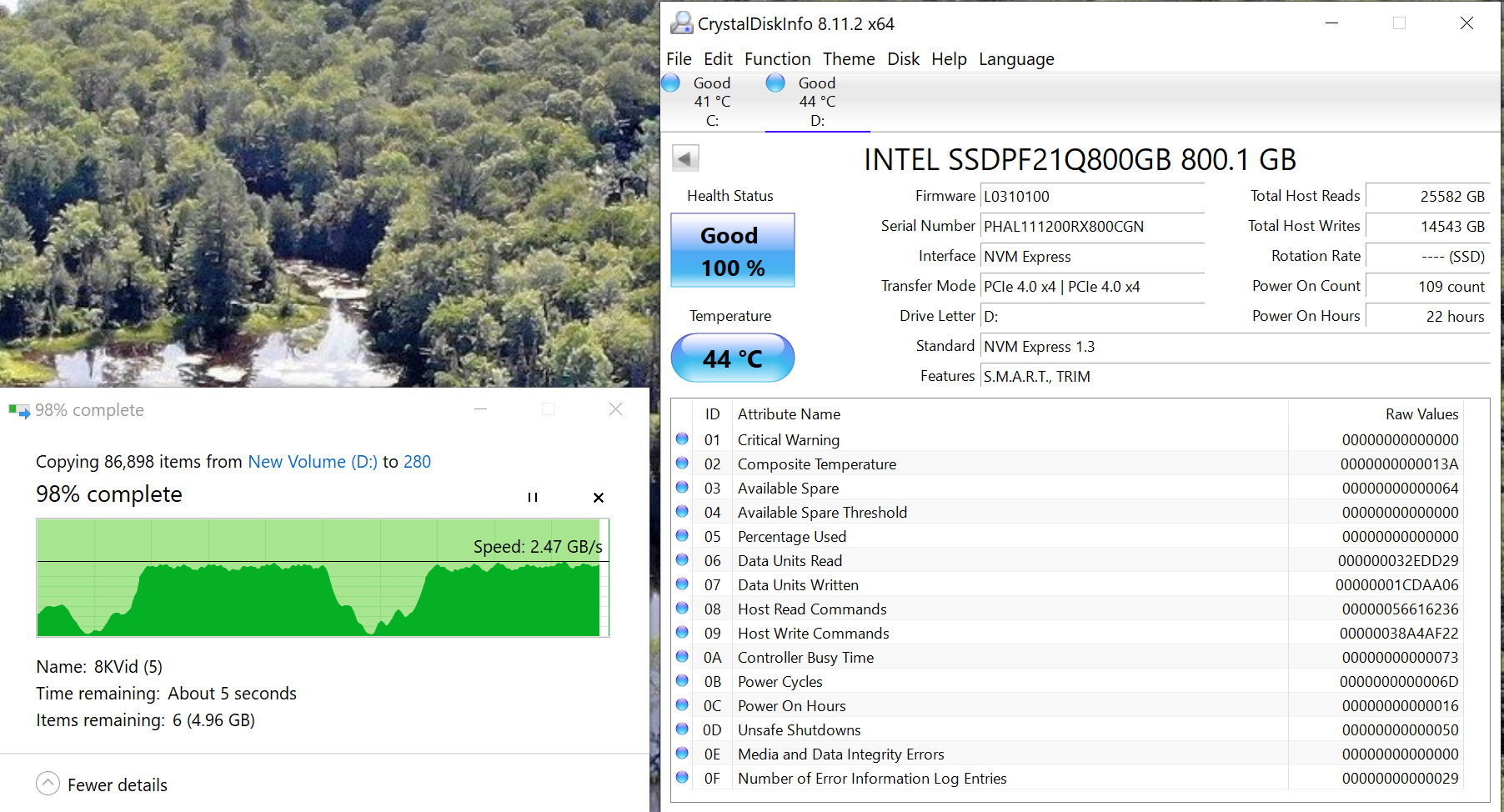

We had spoken a bit previously with respect to the low sustained temperatures we observed throughout our testing of the Intel Optane P5800X PCIe 4 NVMe SSD and wanted to provide a bit of validation here. During our testing, the highest temperature we could achieve was 44°C during a 8K video write transfer as shown here:
More to the point however, we have had the Intel Optane in our main system for several days now and can attest to the fact that the median temperature for our Sabrent Rocket 4 Plus Gen 4 4TB SSD is 43°C, while the Intel Optane P5800X is 35°C.
INTEL MEMORY AND STORAGE TOOL
Intel has a great software program called the memory and Storage Tool (MAS) available for monitoring (and much more) of your Intel SSD. It is free and can be found here. This software provides the most detailed SMART information you can find for your Intel SSD, Firmware Update, Diagnostic Scan, as well as the quickest and easiest way to Secure Erase an SSD that we have ever seen.
For our Optane P5800X, we simply went into Windows 10 Disk Management, removed the logical partition from the drive and then clicked on Erase in the software. It took less than two seconds to Secure Erase the P5800X to like new state once again!
