Crucial T700 PCIe 5 SSD Review – 12.4GB/s Throughput with over 1.6 Million IOPS

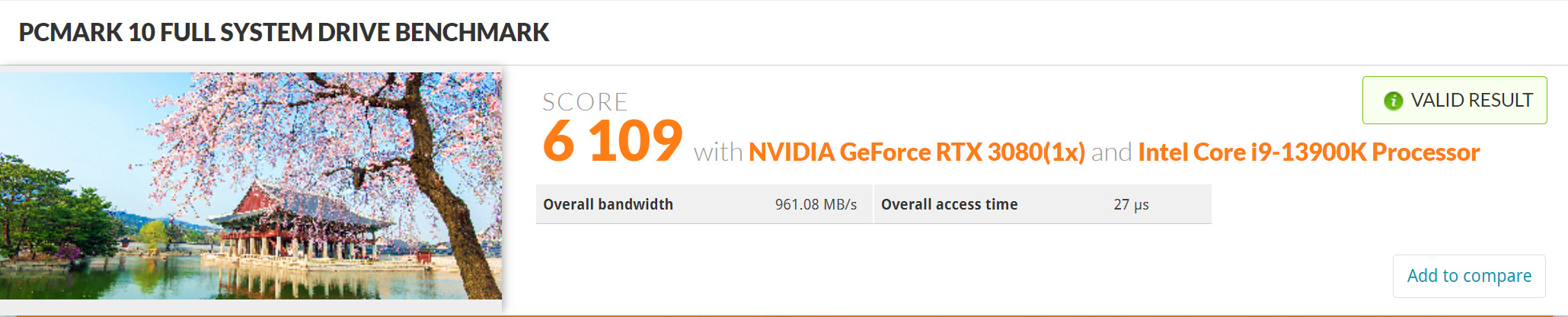

PCMARK 10 FULL SYSTEM STORAGE BENCHMARK

PCMark 10 Storage Benchmarks produce an overall score as a measure of drive performance. Comparing devices is as simple as comparing scores. The tests also measure and report the bandwidth and average access time performance for the drive. Each test uses traces recorded while performing real-world tasks such as booting Windows 10, starting applications such as Adobe Photoshop and Illustrator, working with applications such as Microsoft Excel and PowerPoint, and copying several large files and many small files.

The Crucial T700 Gen 5 SSD performed as one might expect with a superior bandwidth and very low latency, placing it behind the Intel Optane.

blank

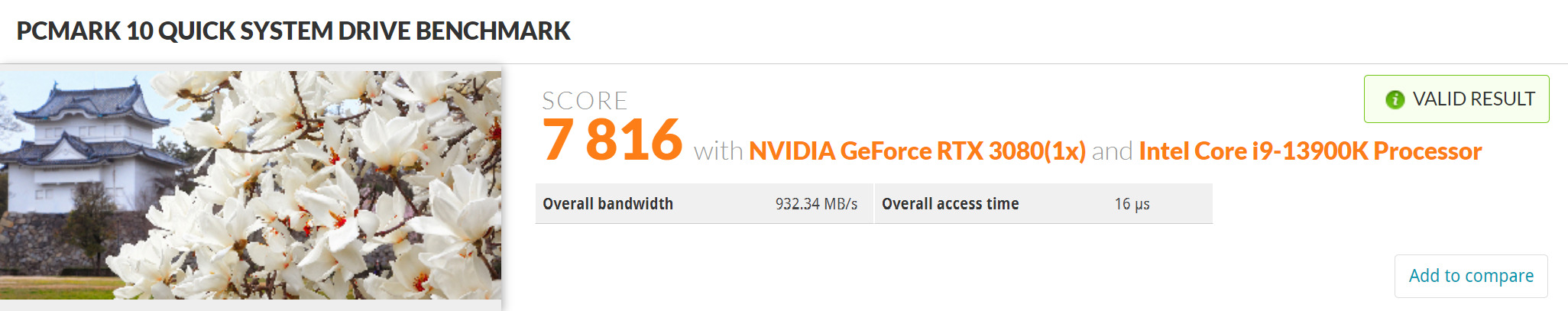

PCMARK 10 QUICK SYSTEM STORAGE BENCHMARK

The Quick System Drive Benchmark is a subset of the Full test and is more representative of typical daily usage to show what would be expected regarding hybrid SSD performance on a day-to-day basis.

blank

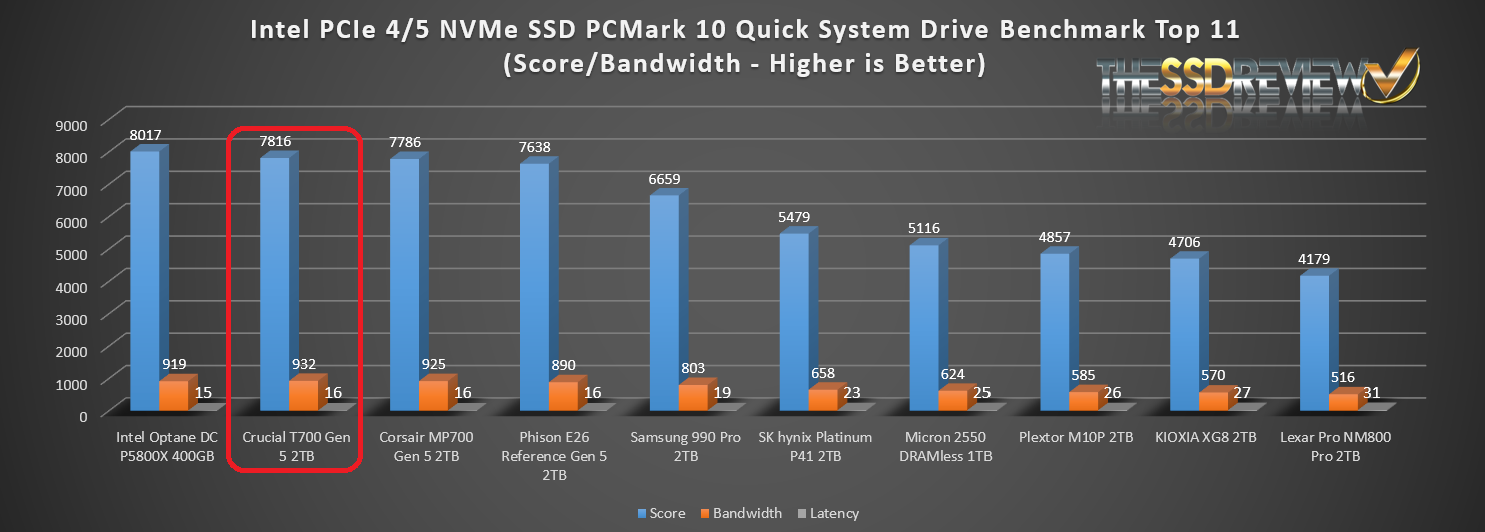

The Crucial T700 did equally well with the PCMark 10 Quick System Drive Benchmark as it once again bettered all but the Intel Optane.

blank

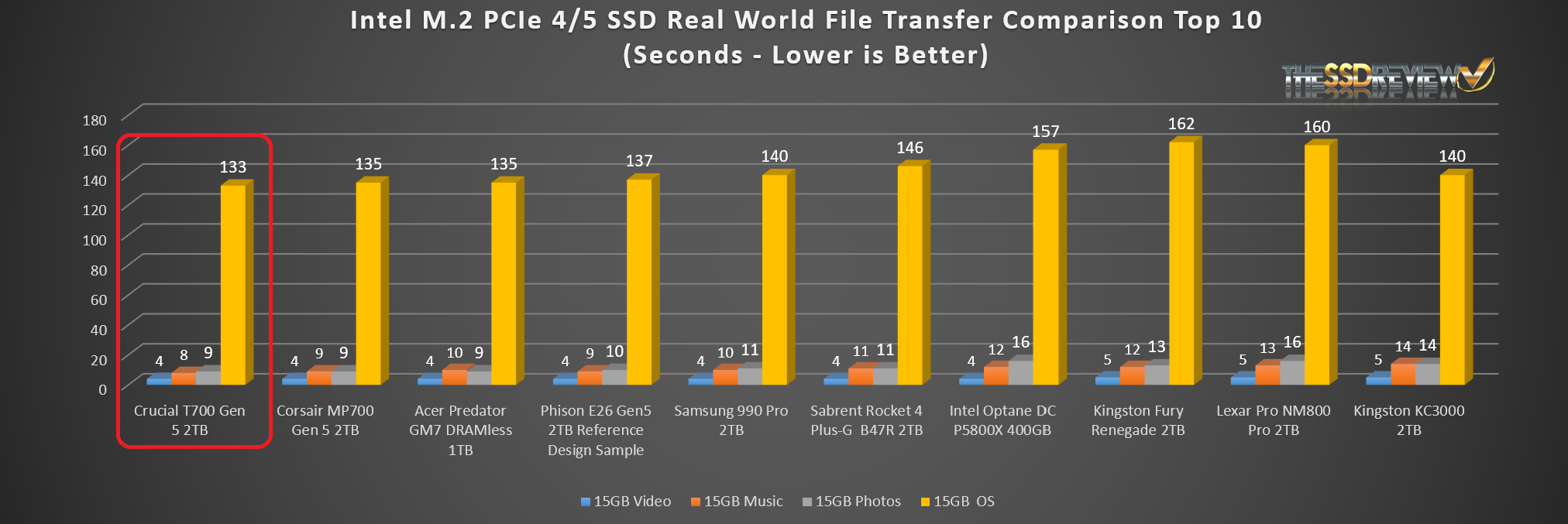

TRUE DATA TESTING

For our True Data Testing, we simply loaded 15GB video, music, photo and OS files onto the Crucial T700 Gen 5 2TB SSD and copied the data to a new folder on that same disk.

blank

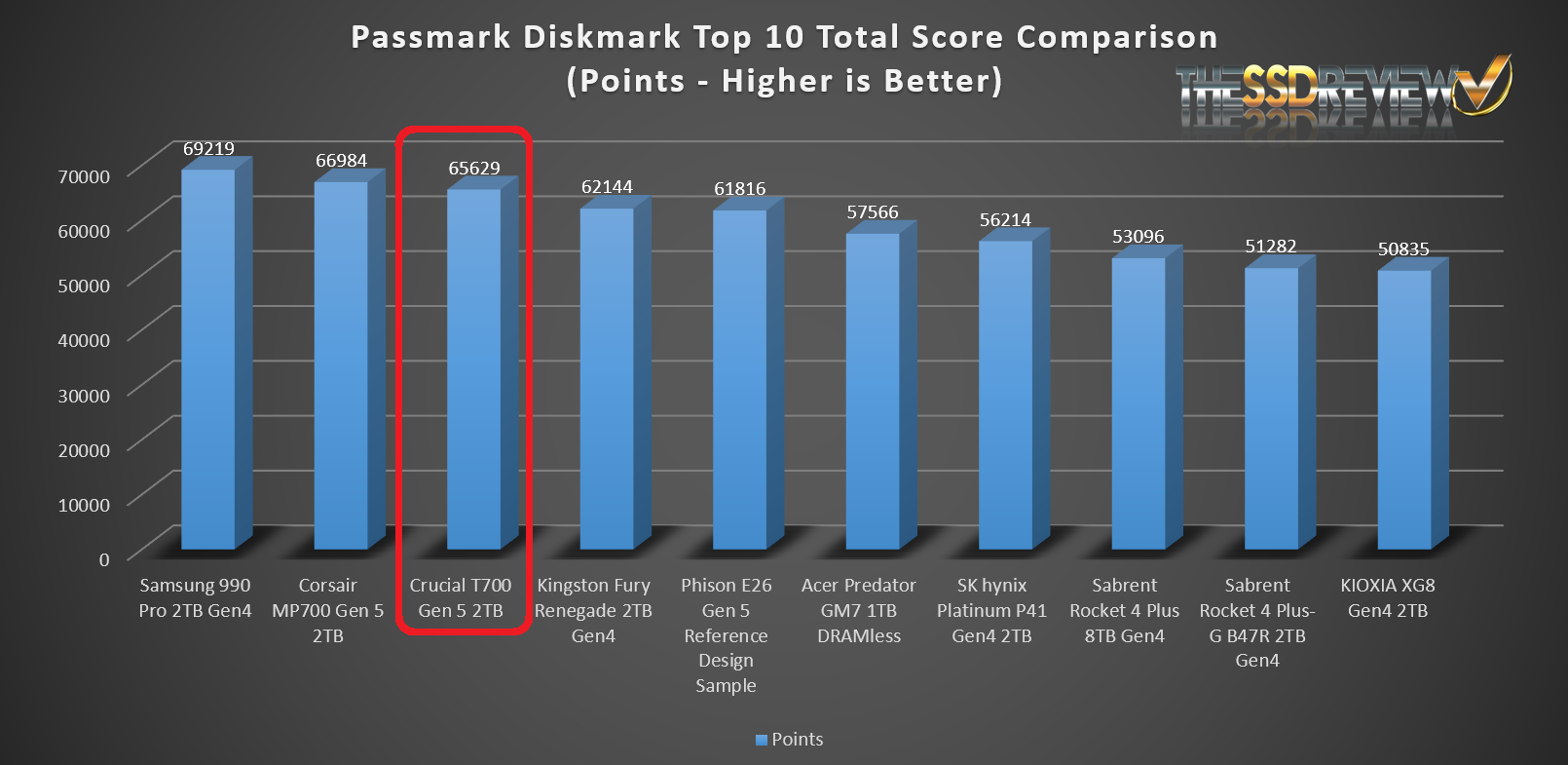

PASSMARK PERFORMANCE TEST

We thought we might add a few extras in our report today, PassMark Performance Test DiskMark component being a nice addition. This software tests sequential reads and writes, along with IOPS and compares the result with millions of other SSDs worldwide. We might suggest being in the 99th percentile of all SSDs tested was a nice result.

blank

Once again, the Crucial T700 was amongst the best results we had ever received.

blank

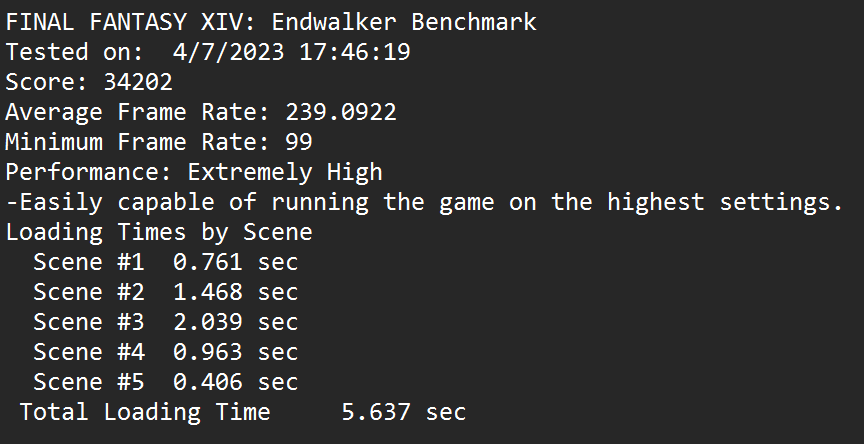

FINAL FANTASY XIV: ENDWALKER BENCHMARK

The Final Fantasy Benchmark is a new tool in our arsenal and geared specifically to the gamer. The software is installed directly on the SSD and the SSD tested, providing and end result of FPS and scene transition times.

blank

The Crucial T700 PCIe 5.0 2TB pushed through with the quickest game loading time that we have gotten to date.

blank
