INTEL OPTANE MEMORY – OPTANE/HDD CACHED

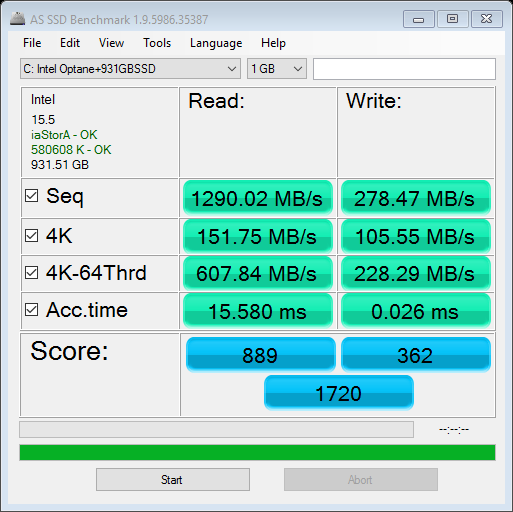

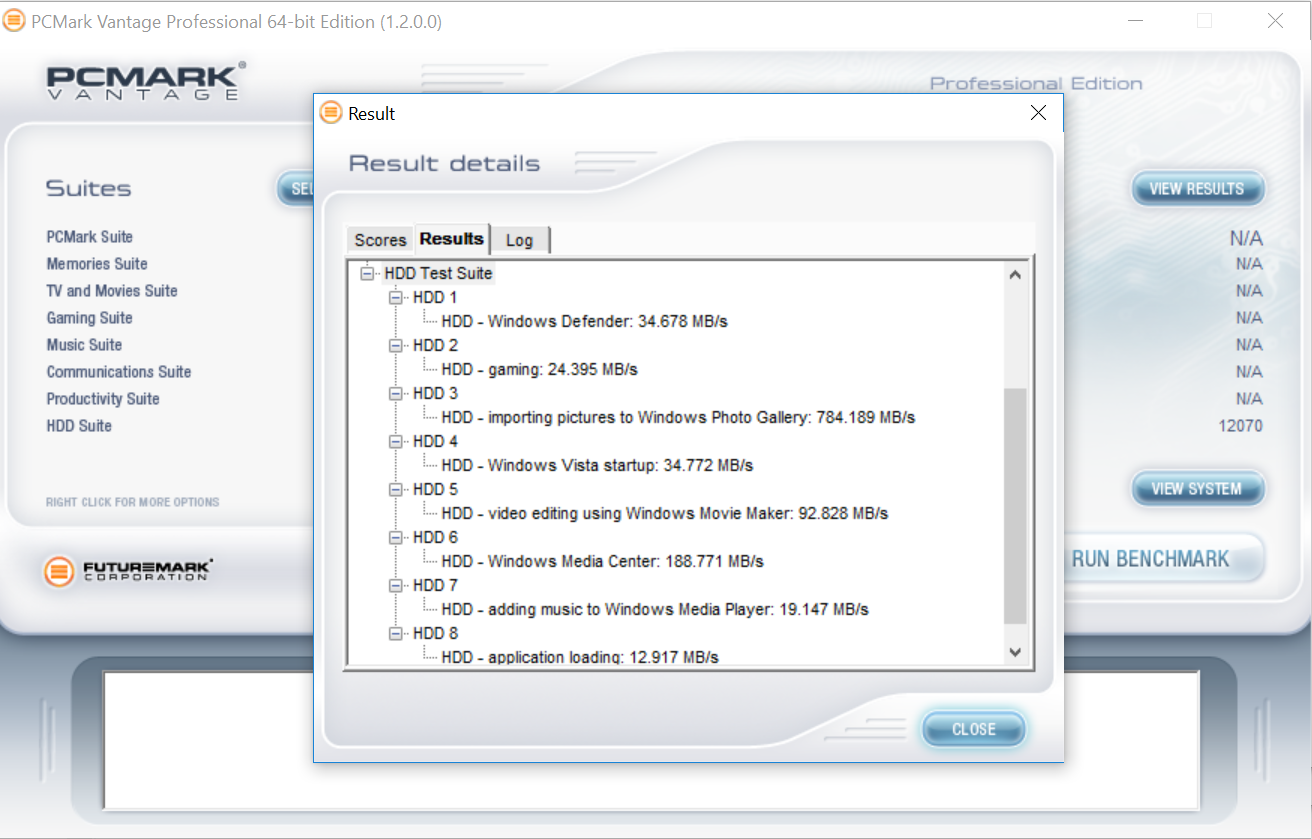

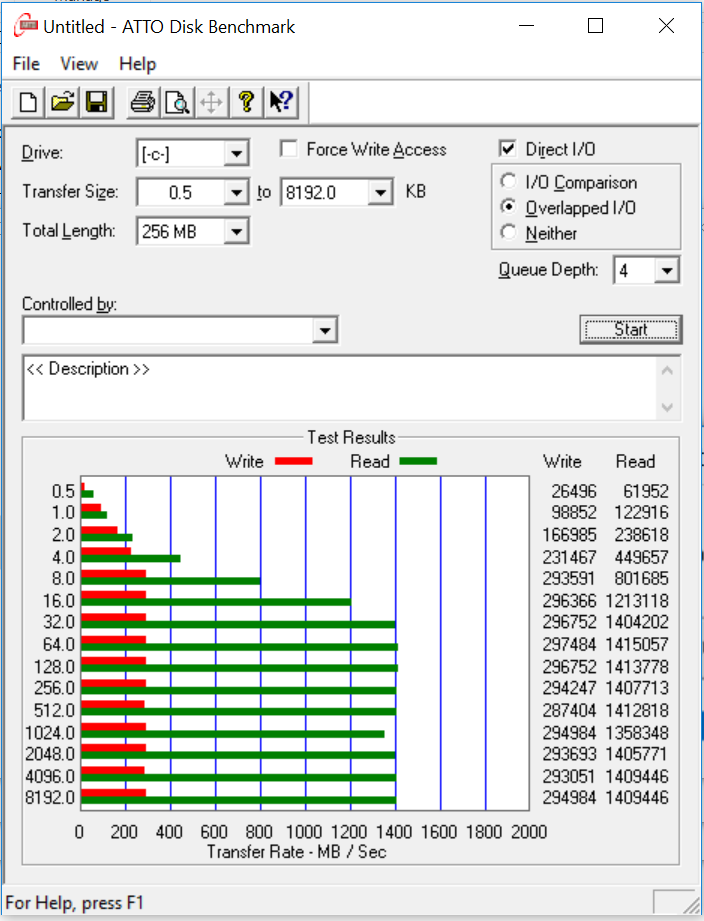

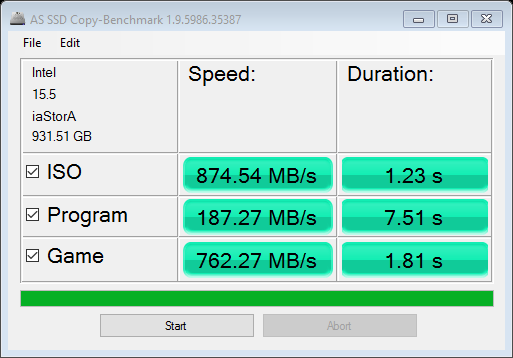

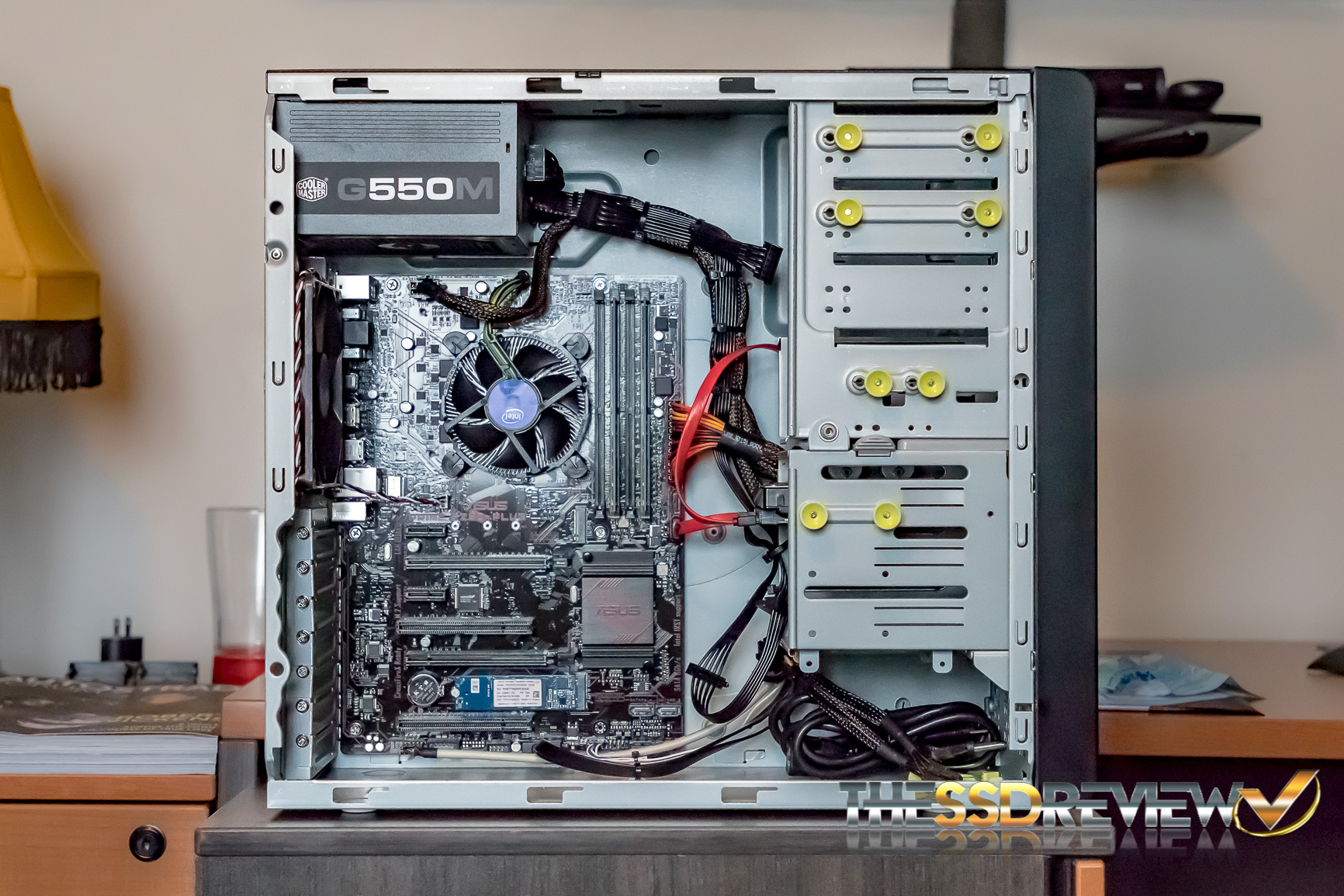

So we have tackled testing the WD Black 1TB hard drive, and we ripped out the Intel Optane 32GB module from the Intel Test System and tested that…SSD style. For this scenario, we are Intel Optane memory as a caching system, just the way we received it.
CRYSTAL DISK BENCHMARK VER. 5.2.1 X64

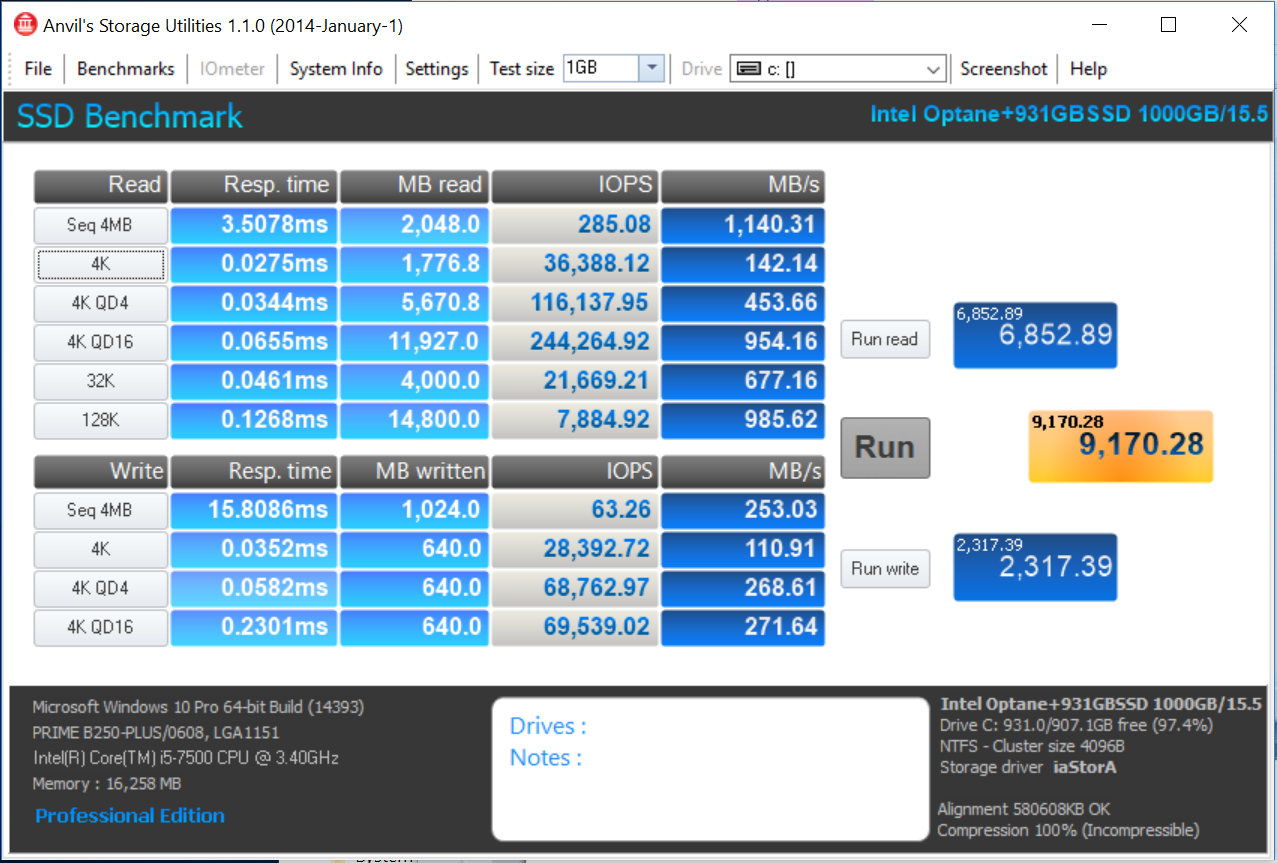

ANVIL STORAGE UTILITIES PROFESSIONAL
INTEL OPTANE MEMORY PERFORMANCE SUMMARY
Where to start… Ok so, we can see that, even cached, we have retained our high sequential 1.4GB/s read and 300MB/s write performance which is great, but you will see these speeds actually occur very seldom. Remember what we said about large files not being cached? Performance relates to caching which is why we recommend getting the largest cache drive possible.

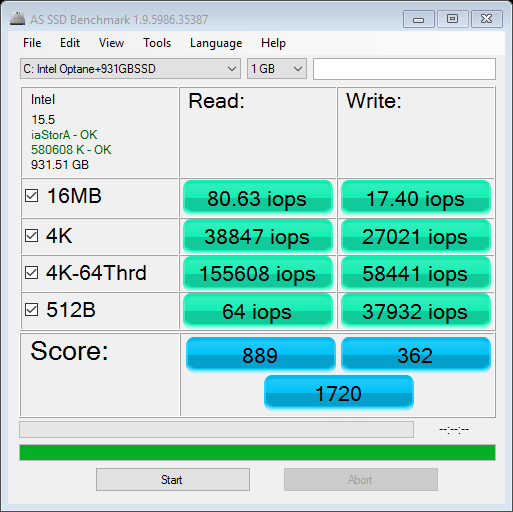

Low 4K Read (remember those small files that start things) throughput and IOPS are still off the roof, even when cached, at 204MB/s and 244.000 IOPS. We have never seen this before, especially in some sort of caching program.
Would you consider testing these with the built in Windows 10 Ready Boost alongside the plain HDD?
Are you asking for a comparison of Ready Boost using a USB to that of Optane. You do realize that the USB has a much lower low 4k read speed than the Optane dont you… to the tune of 150-200 times. We are an SSD site but I have tested Ready Boost on my own in Windows. IMO it is more gimmic than worth the trouble. With Optane… in this case, the startup system files are readily available in the cache to equal the startup of an SSD. I might think that alone would dissuade any thought of comparison. Thanks for taking the time to comment.
My apologies, I thought it was possible to dedicate a SSD 32 GB or smaller as a Ready Boost drive. If that is not the case then disregard. Thanks for the review. I hope Micron releases a more hardware agnostic version in the future (for AMD boards with NVMe).
No need to apologize.. stuff like this makes us think outside the box. This actually let me in another direction to confirm something i wasn’t sure of with respect to new Optane.
Les, I would have like to have seen the Intel DC P3700 in the Real World File Transfer Tests, having said that the Kingston DCP1000 is beyond insane at File Transfers, the Intel Optane excels at 4K low queue depth Reads and the Lowest Latencies i’ve seen to date
“on a green PCB”
Interesting. If the PCB is environment friendly then it is bigger news to me then optane memory.
I wonder how reliable Optane is. Anandtech.com reported that when it failed it took some data with it. I have no issue recommending SSHD over plain HDD but what is worrying me is required software component.
So it performs admirably as a read cache, but what about as a write cache? Would the low latency be good enough to overcome the limited sequential write speeds if faced with continuous cache eviction?
My system runs quite a bit faster than the Intel upgrade:
9,068 MB / s Read, 14,048 MB / sec Write.
4K Random Read 1,556 MB / sec, 4K Random Write 1,068 MB / sec.
https://www.romexsoftware.com/en-us/primo-cache/
Romex Primo Caching Software accelerates all read / write operations with RAM and SSD caching, turbo charging any CPU to run just as fast as the RAM can go…
People keep trying to fix the Hard Drive speed bottle neck in hardware,
when it is much easier to fix in software, and RAM caching…
Primo Cache works similar to the Intel device. Say you have 32GB of RAM,
set aside 16 GB for a super sized RAM cache – all read / writes work at RAM speeds.
Primo Cache pairs ANY SSD device to the RAM cache, for a second level of persistent caching. All the stuff you use all the time, is copied to the SSD.
On boot up, the SSD reloads all your commonly used info into the RAM cache,
and the RAM cache dynamically updates itself to constantly keep you at top speed.
Go ahead and hook up your favorite 8 TB Seagate Drives to your system…
PrimoCache ensures your Big Iron hard drives run at RAMming speed.
Drop down box with sub-pages please. Clicking 1-9 is so annoying
There’s an option being overlooked by both Intel and MS:
Readyboost filters small (~4K), random, oft used files onto media with lower latency than the main drive.
The 2 drives then read/write files they are best and fastest at handling, at the same time.
ie: A sort of ‘optimised for drive characteristics’, RAID 0…
Now look at the random 4K read performance of Optane versus SATA SSDs and even NVME SSDs:
https://www.google.co.za/search?q=optane+4k+random+write&safe=off&source=lnms&tbm=isch&sa=X&ved=0ahUKEwib_bSaqNHTAhWqB8AKHdxABmcQ_AUIDCgD&biw=1536&bih=798#safe=off&tbm=isch&q=optane+4k+random+versus+sata+ssd&imgrc=_
Writes are not as impressive as random writes go into the DRAM cache on the SSDs, but:
> This info can be lost in a power outage, so safer.
> The low write speeds are only valid until the DRAM cache is full.
> There should be an increase in SSD life as info is written to flash in 2-4 MB blocks
nowadays.
I think it’s worth testing to see if Readyboost does a better job than Intel’s RST due to this filtering/Optimised RAID 0..?
Info on overriding MS’s Readyboost settings, to test this:
https://hatsoffsecurity.com/2015/05/31/force-enabling-readyboost-windows-78/
But will anyone? The ‘not invented here’ force is strong in humans! 🙂
Romex:
Everyone knows that with your software installed you basically end up using a HDD benchmark to benchmark RAM.
Untick ‘Direct IO’ in Atto and MS’s Super/prefetch makes your block cache look stupid.
Can your software do predictive caching, without wasting RAM by caching what’s already cached by prefetch?
ie: Write software that switches on Superfetch with SSDs and add your SSD-saving ‘deferred writes’ and I’ll buy it!
I will say that your caching of HDDs to SSDs is very good and universal, so if one wants to cache any HDD onto any SSD, or even RAIDed SSDs; PrimoCache is the best option.
