Mushkin Pilot-E M.2 NVMe SSD Review – The Pilot Climbs to 3.4GB/s

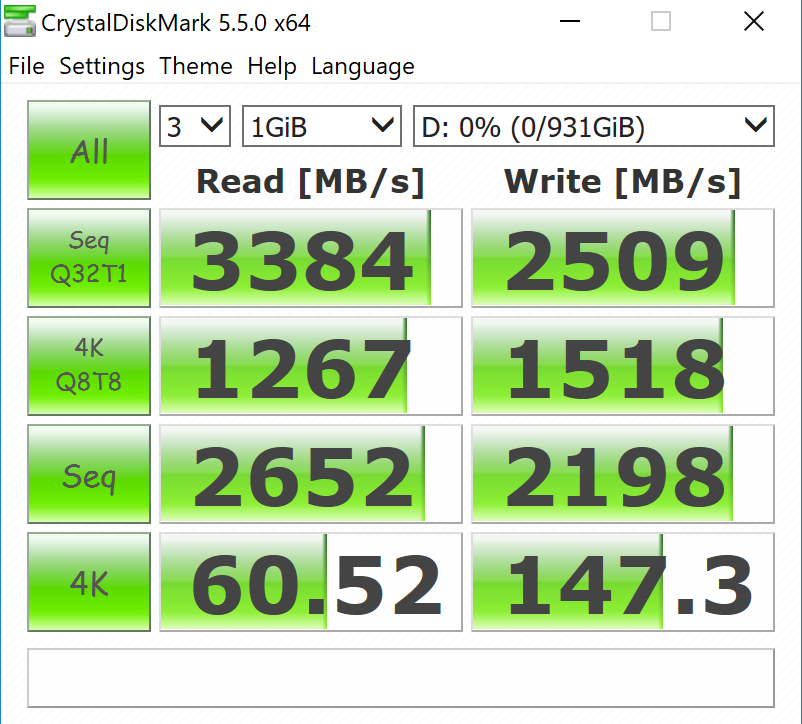

CRYSTAL DISK BENCHMARK VER. 5.5.0 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.

Crystal DiskMark has great returns at all levels but we really like to see that low 4k random read speed of 60MB/s.

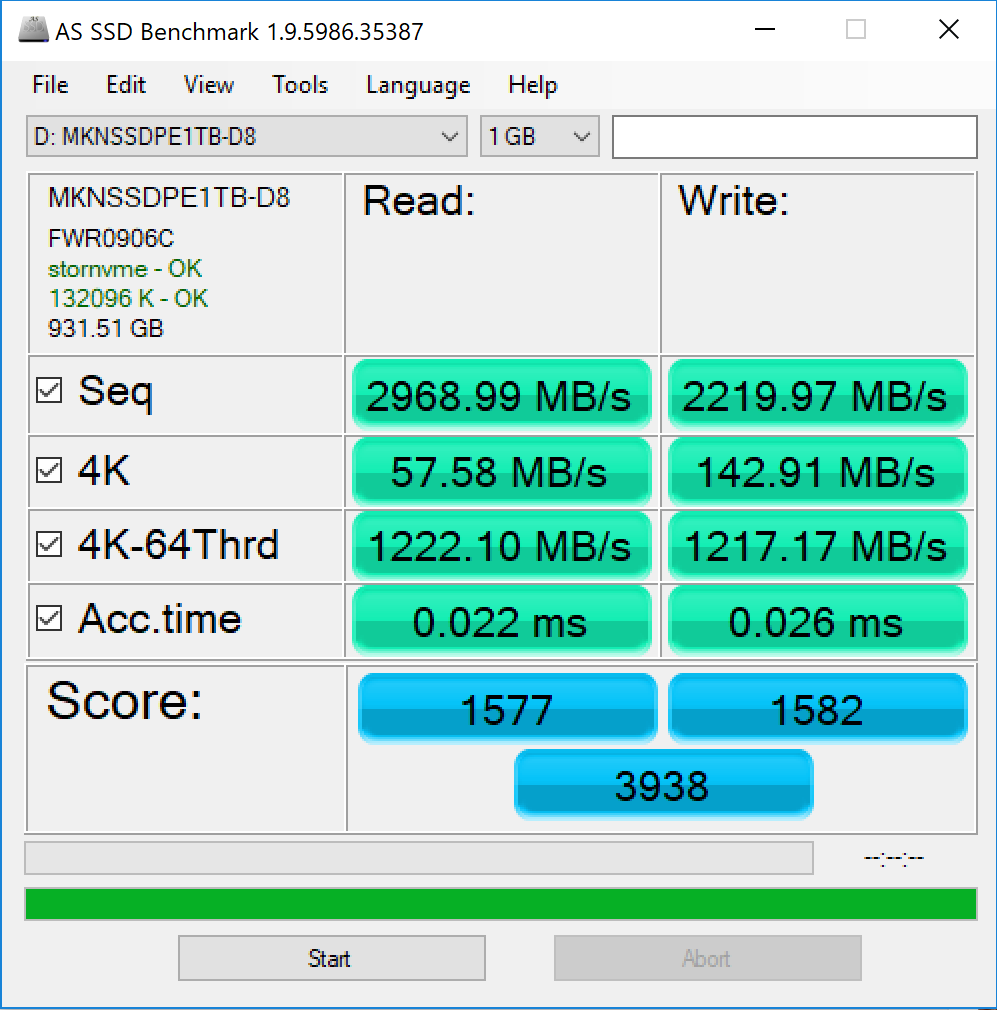

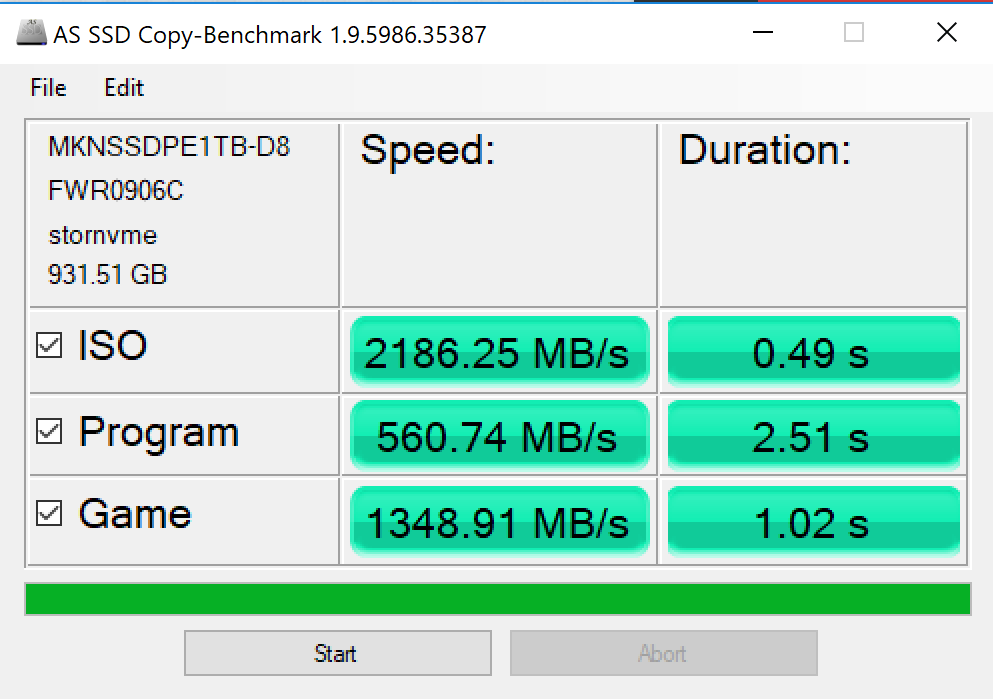

AS SSD BENCHMARK VER 1.9

The toughest benchmark available for solid state drives is AS SSD as it relies solely on incompressible data samples when testing performance. For the most part, AS SSD tests can be considered the ‘worst case scenario’ in obtaining data transfer speeds and many enthusiasts like AS SSD for their needs. Transfer speeds are displayed on the left with IOPS results on the right.The AS SSD results aren’t as appealing as we might like to see but do get a first look at read and write IOPS which appear to be in the general ball park of listed specs.

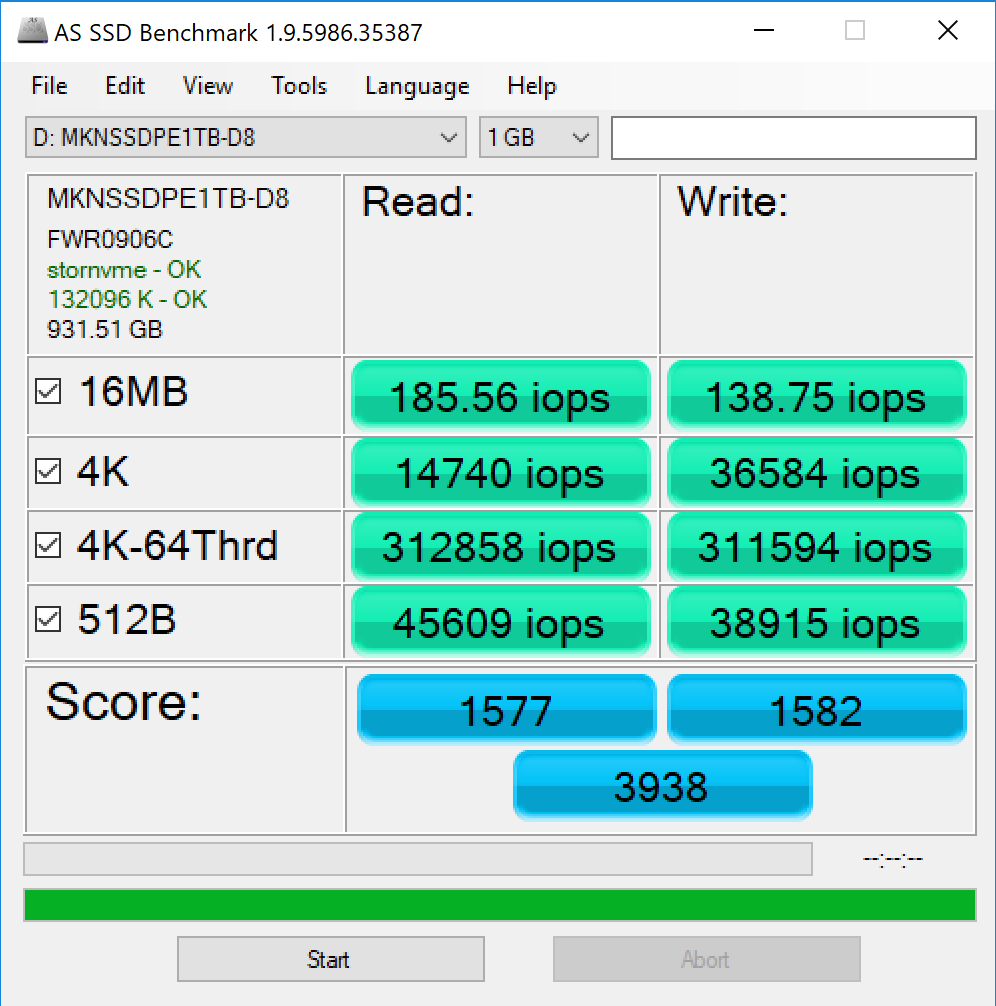

AS SSD performance is a bit lower than expected but nothing to worry about.  It is the first time we get to see IOPS grades however, these being 312K IOPS read and 311K IOPS write.

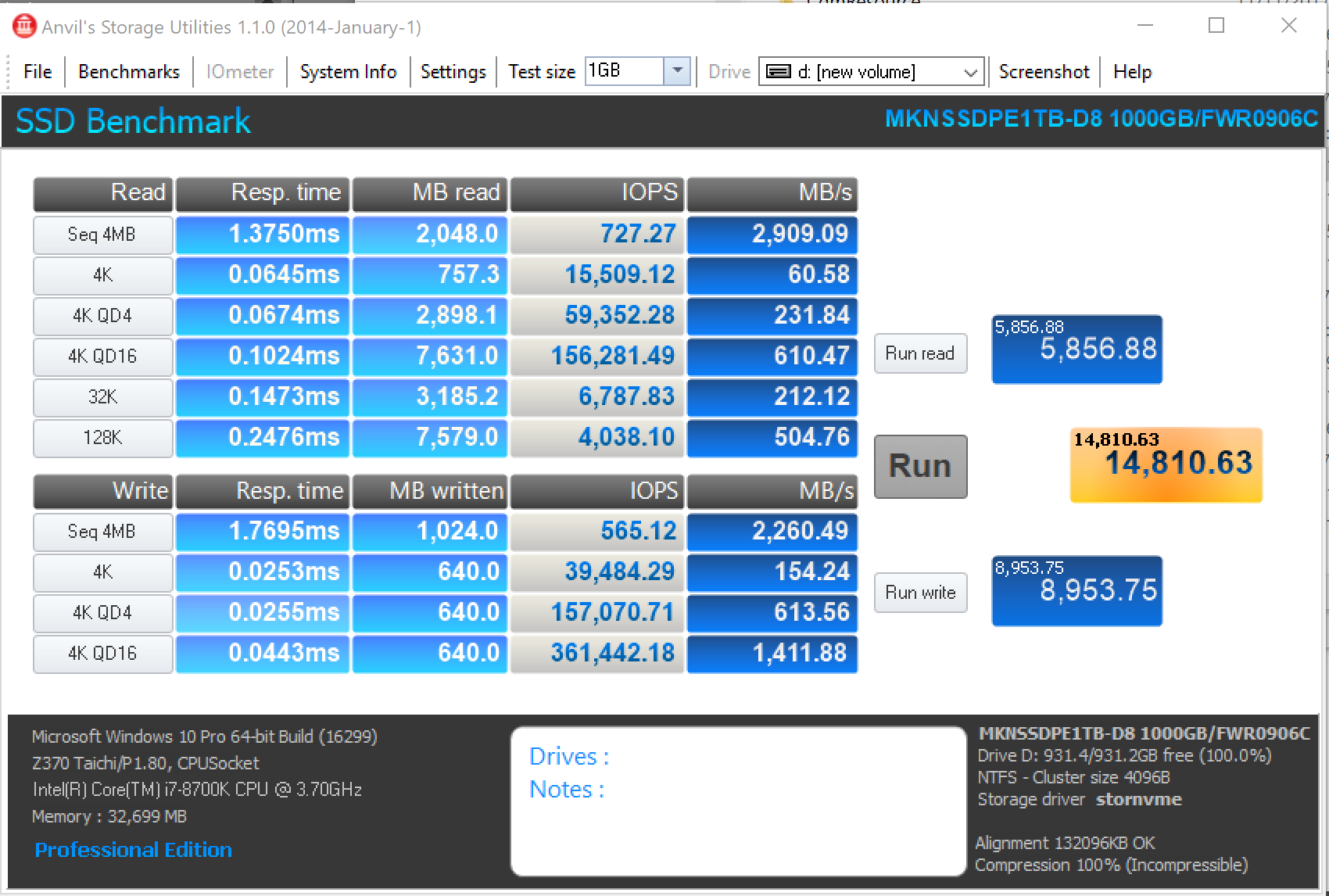

ANVIL STORAGE UTILITIES PROFESSIONAL

Anvil’s Storage Utilities (ASU) are the most complete test bed available for the solid state drive today. The benchmark displays test results for, not only throughput but also, IOPS and Disk Access Times. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

Its expected that performance would be lower in Anvil, as is normally the case, but we didn’t expect to see 4K random write IOPS at 361K.

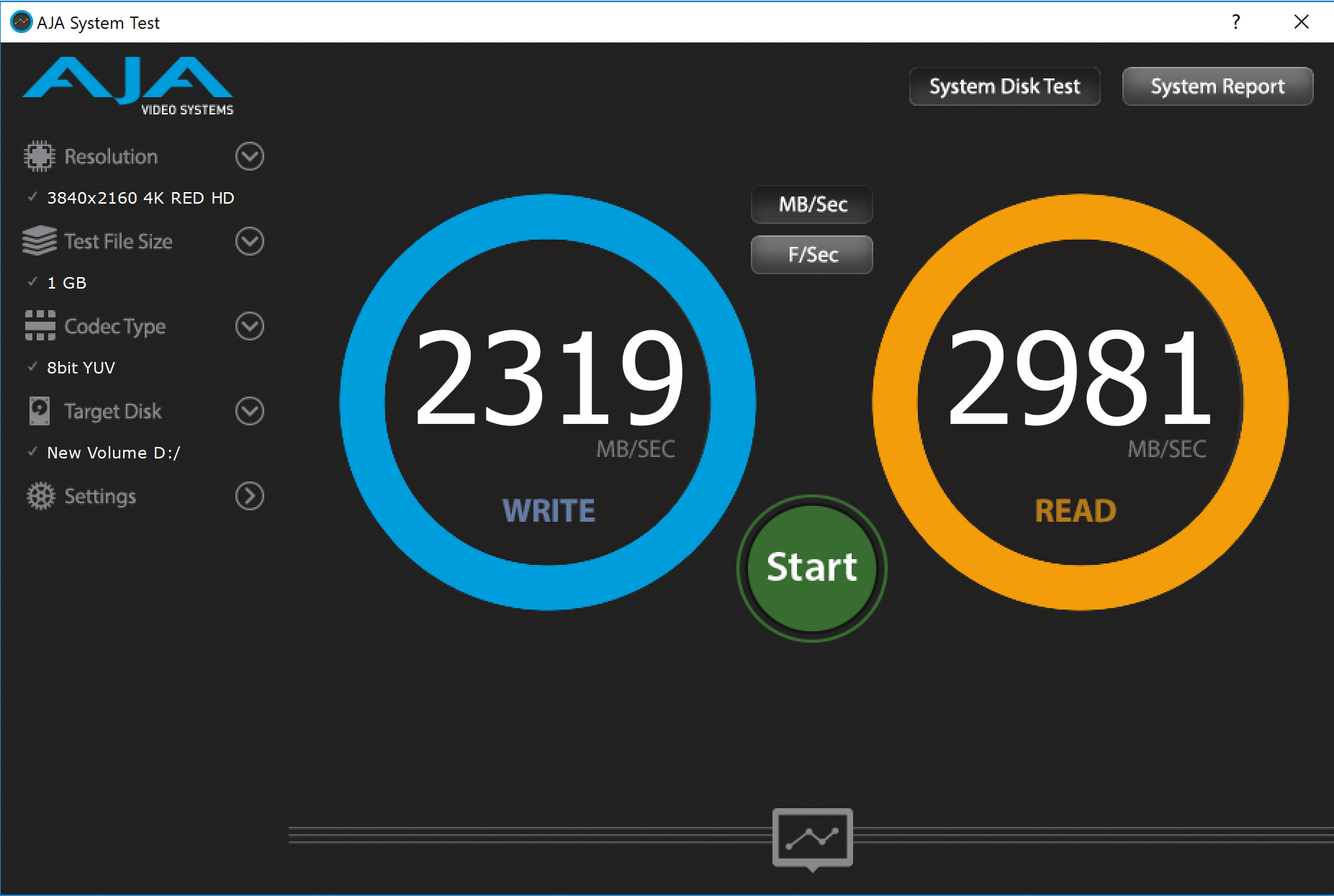

AJA VIDEO SYSTEM DISK TEST

The AJA Video Systems Disk Test is relatively new to our testing and tests the transfer speed of video files with different resolutions and Codec.
