TEST BENCH AND PROTOCOL
Our analysis today will be conducted with our Asus Z77 Premium Test Bench. Clicking on any pictures or benchmarks will bring up a more easily viewable high resolution image.
In testing, our main objective is to obtain results as pure and as accurate as possible and we want to ensure that no anomalies slip through. Simply put, we want to provide you with the absolute best results the tested hardware can provide. Repetition in testing is standard and, if necessary, we may conduct specific tests in Windows 7 ‘safe mode’ to ensure the OS has little to no influence on the end result.
In order to validate and confirm our findings, testing is supported by industry accepted benchmark programs. All results are displayed through capture of the actual benchmark for better understanding of the testing process by the reader.
We would like to thank ASUS (P8Z77-V Premium), Intel (Core i7-3770K), Crucial (Ballistix), Corsair (H100) and Be Quiet (PSU/Fans) for supporting the build of our Z77 Premium Test Bench. In addition, we would also like to thank HighPoint for their contribution of the RocketStor 5322
, RocketRAID 2711 and their External Mini-SAS to Esata cabling. Through this configuration we are able to benchmark all notebook and mSATA SSDs, whereby achieving identical performance as a direct system connection, yet we simply hot swap from the external storage dock.

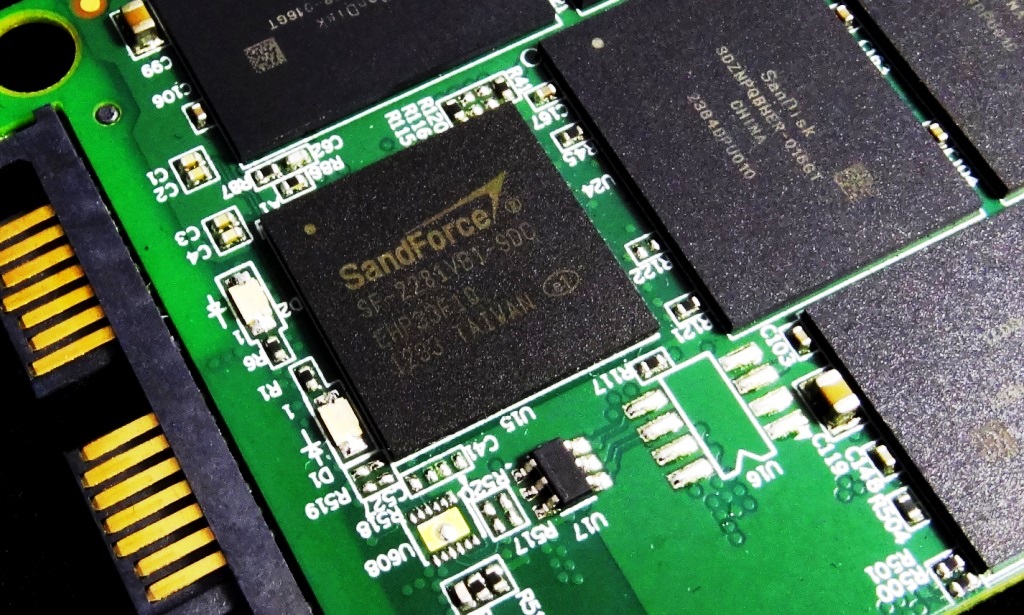

SANDFORCE SF-2281 FLASH STORAGE PROCESSOR (FSP)
SandForce FSPs are one of the most popular controllers found in SSDs today with just under 50 partners using them in their SSD products. The Mushkin Chronos GO Deluxe contains the SF-2281 6Gbps (SATA 3) eight channel FSP. It is interesting to note that in the 180GB version of this SSD, only six channels are in use.
BENCHMARK SOFTWARE
The software we will be using for today’s analysis is typical of many of our reviews and consists of ATTO Disk Benchmark, Crystal DiskMark, AS SSD, Anvil Storage Utilities and PCMark Vantage. We rely on these as they each have a way of supporting one another yet, at the same time, adding a new performance benchmark to the total picture. Much of the software is free and can be downloaded simply by clicking on the linked title.
Crystal Disk Info provides some excellent information about the SSD itself to include its health, product information, ‘power on’ information as well as the characteristics of the SSD. We can see that the SSD is capable of TRIM as it is not greyed out as with AAM.
