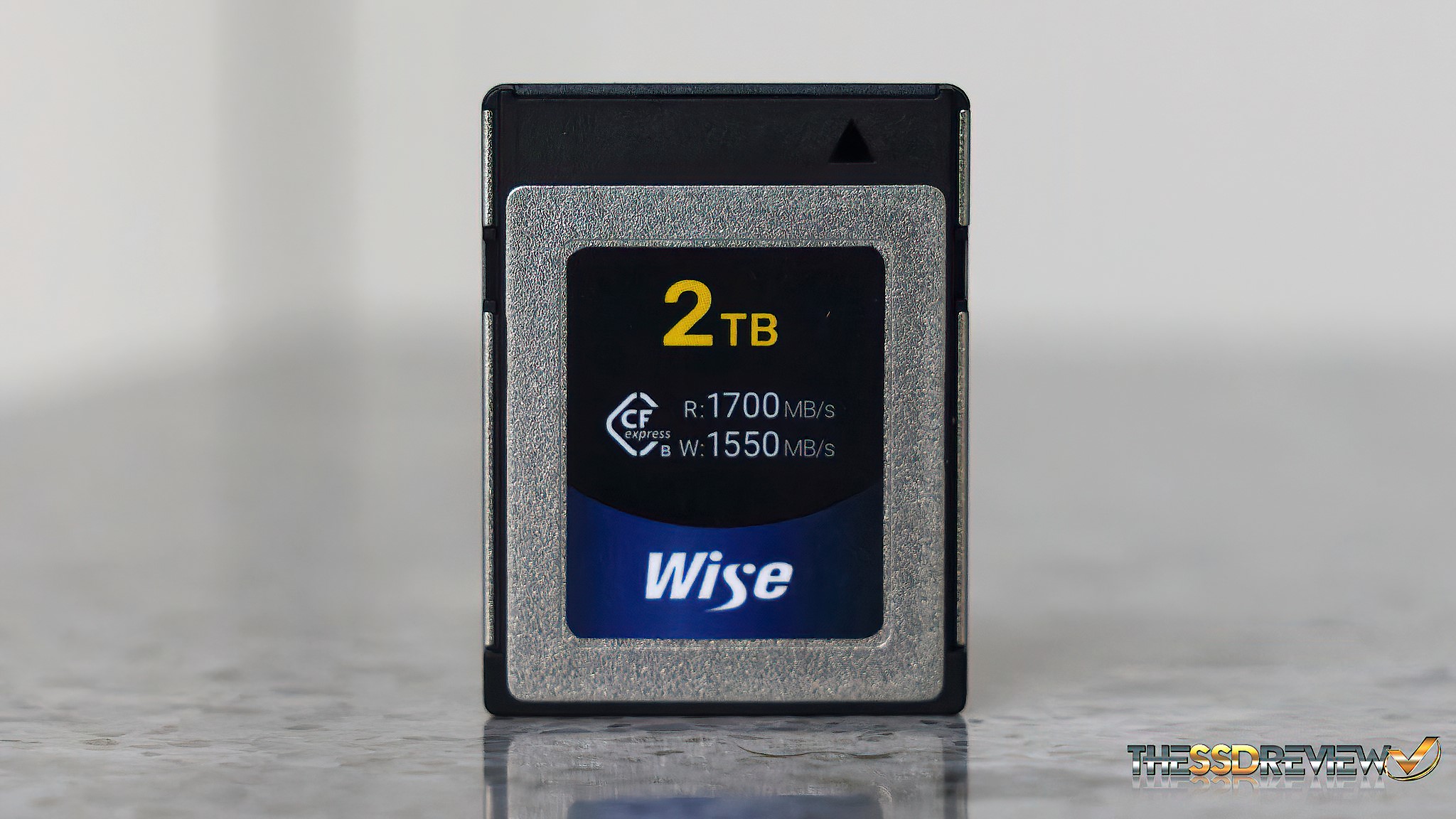

WISE CFEXPRESS TYPE B 2TB MEMORY CARD

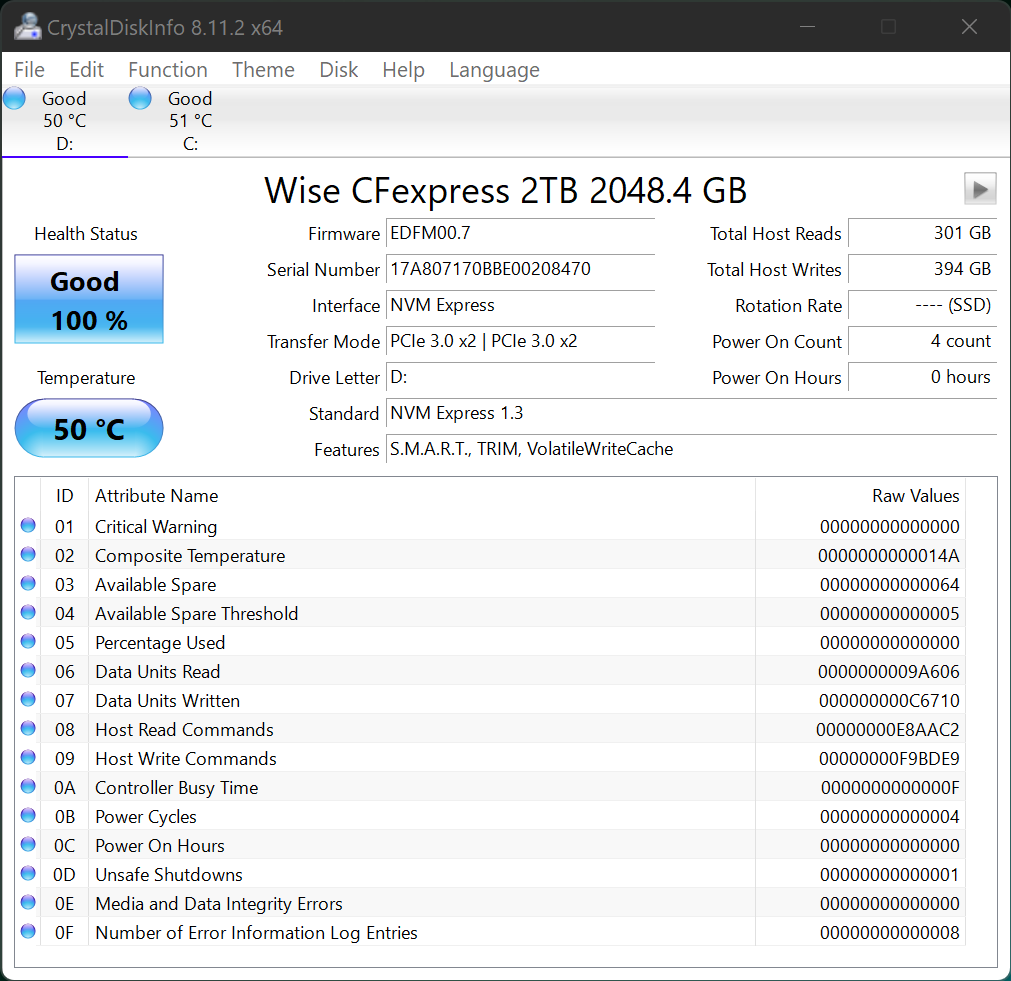

CRYSTAL DISK INFO VER. 8.11.2 X64
Crystal Disk Info is a great tool for displaying the characteristics and health of storage devices. It displays everything from temperatures, the number of hours the device has been powered, and even to the extent of informing you of the firmware of the device.

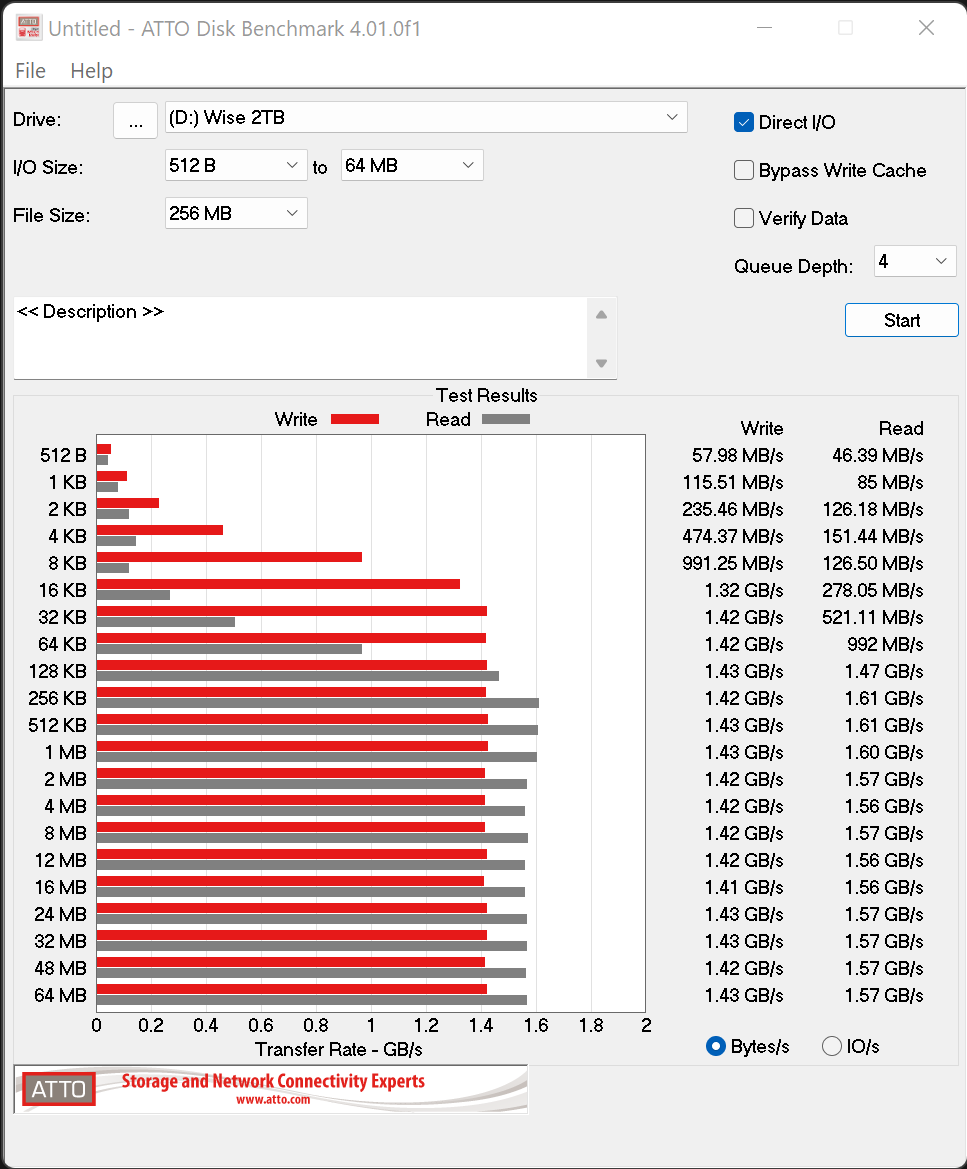

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

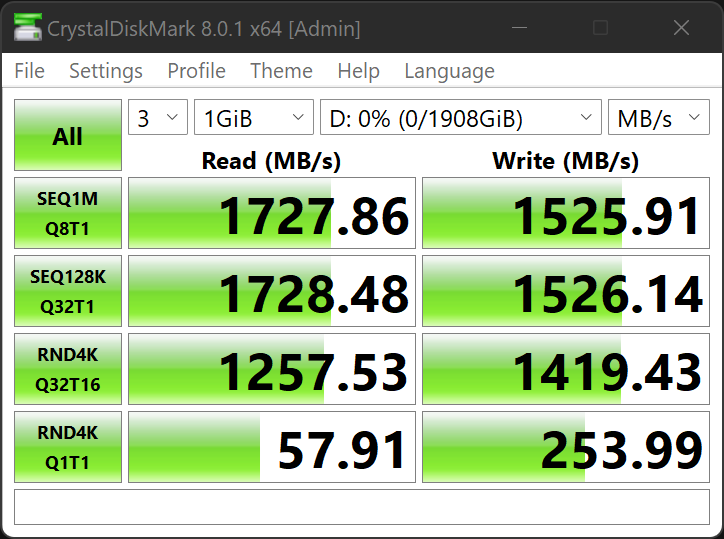

CRYSTAL DISK BENCHMARK VER. 8. 0.1 X64
Crystal Disk Benchmark is used to measure read and write performance through sampling of random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.
THROUGHPUT

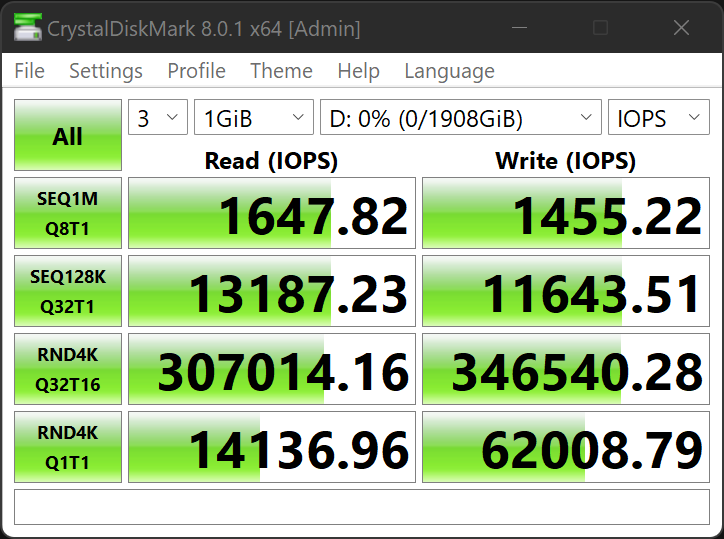

IOPS

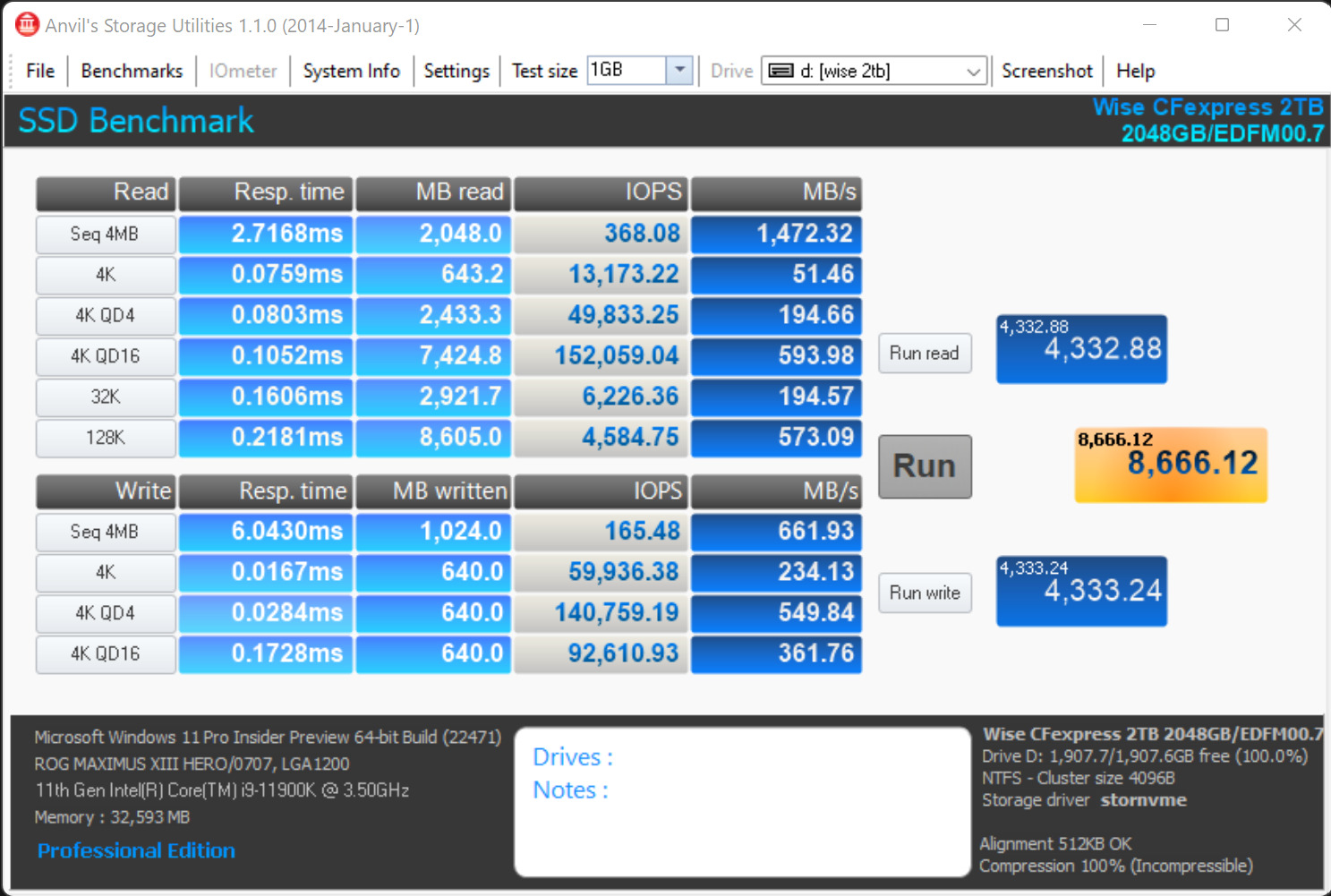

ANVIL STORAGE UTILITIES PROFESSIONAL
Anvil’s Storage Utilities (ASU) are the most complete test bed available for the solid state drive today. The benchmark displays test results for, not only throughput but also, IOPS and Disk Access Times. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

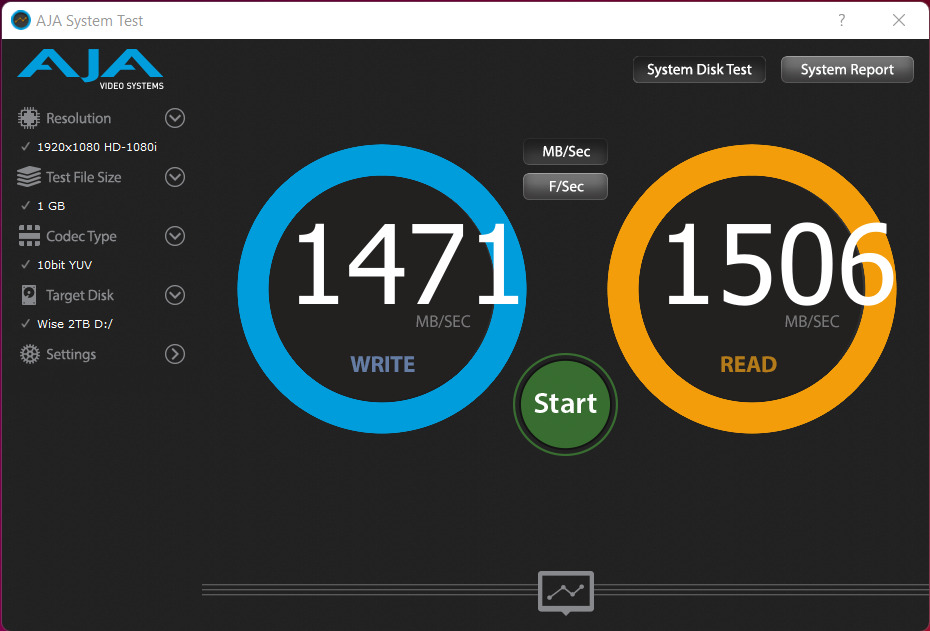

The AJA Video Systems Disk Test is relatively new to our testing and tests the transfer speed of video files with different resolutions and Codec.

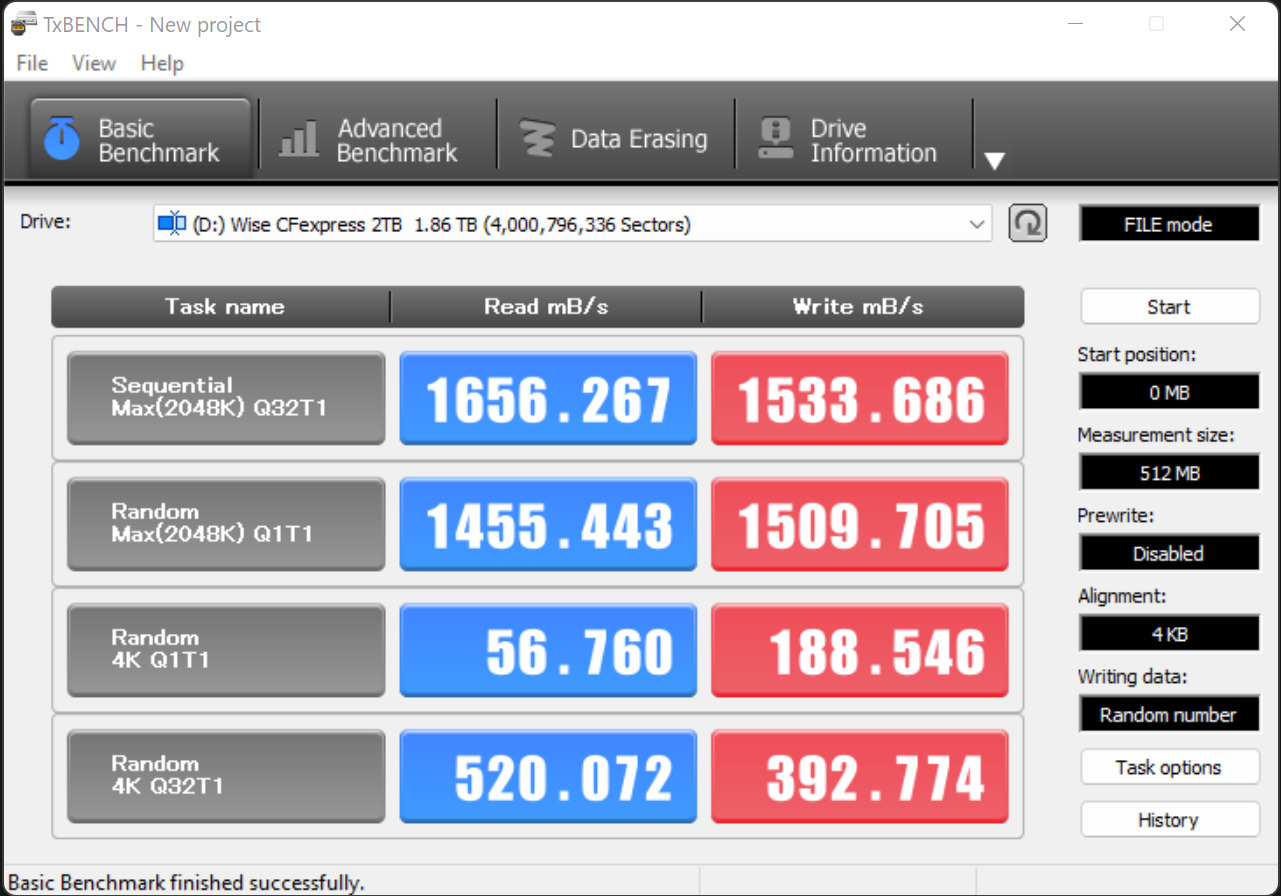

TxBench is one of our newly discovered benchmarks that we works much the same as Crystal Diskmark, but with several other features. Advanced load bench-marking can be configured, as well as full drive information and data erasing via secure erase, enhanced secure erase, TRIM and overwriting. Simply click on the title for a free copy.
Les, In the second paragraph you state the Canon EOS R5 can capture photos at 20 per minute. This should actually state 20 per second. From Canon’s website: “EOS R5 camera features a selectable electronic (silent) shutter mode, and can capture images at up to 20 fps”.
You are absolutely right and fixed…. simple slip after several hours working on the report.
Awesome. Thank you for the review! Looks like I know what to get between the three CFx-B card; ProGrade Digital Cobalt 650GB, Delkin Devices Black 512GB and Wise advanced Pro 650GB.
Delkin devices Black 512GB looks like a clear winner in terms of performance and operating temperature follow by ProGrade’s and then Wise’s.
“The 640GB sample is most likely a 1TB CFExpress card overprovisioned.”
I would challenge that assumption, as it makes more sense that the 640GB card is actually a 2TB card with overprovisioning. Multiply 640GB (or 660GB for some other manufacturers) by three and you get near enough to 2TB. Additionally, notice how 2TB and 640GB are the highest capacity cards in each product series, meaning that they probably have the same nand chip quantity and density.
