PLEXTOR M6E PCIE GEN 2 X2 M.2 SSD
The Plextor M6e is the only native PCIe M.2 SSD that is available for purchase in the consumer retail chain right now. We like the way that Plextor has marketed it as they include a PCIe Gen2 adapter card so this M.2 SSD will function in older systems as well as new, still allowing full PCIe x2 performance regardless of the system or age.
It is also the only native PCIe M.2 SSD that contains its own boot files, this being evident when you install it and turn your system on as a Plextor bios initiates before the system bios, making this SSD bootable. For today’s testing, we will be connecting the M.2 SSD directly to the Extreme6 and not using the adapter whatsoever.
Once again, performance is relatively the same as original testing, even after a great deal of use with the Plextor M6e.
CRYSTAL DISK BENCHMARK VER. 3.0 X64
The Plextor M6e definitely breaks that SATA bottleneck but it would sure be nice to see higher low 4k random write scores; these again being consistent with previous tests.

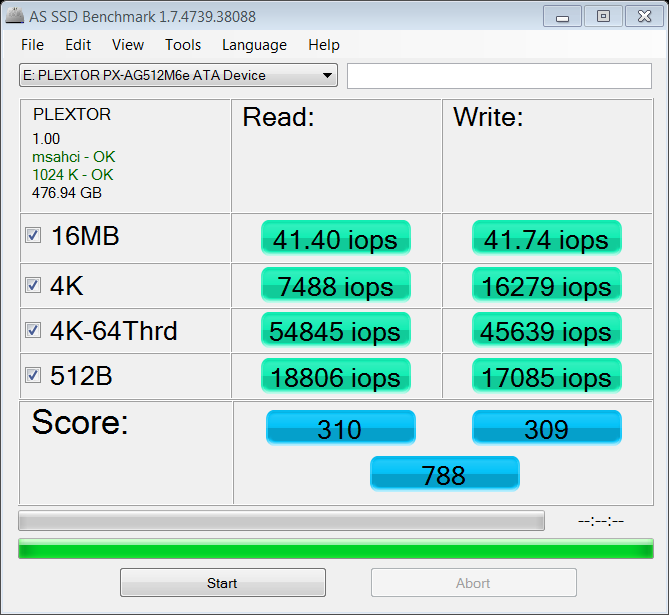

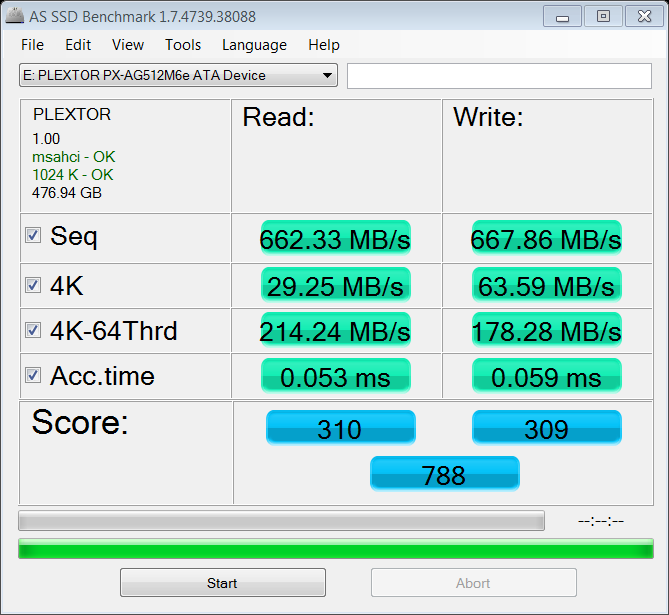

AS SSD results are actually a bit lower than Crystal DiskMark, unlike what we saw with the XP941. Copy Bench results still pulls up some pretty decent ISO and Game transfer times though…
ANVIL STORAGE UTILITIES PROFESSIONAL (BETA)
The PCMark Total Score of 82190 is consistent with the drive in use and we can see a top speed of 507MB/s while testing in Media Center. As we follow through in out tests, the initial throughput difference between the drives really doesn’t seem to be drastic, however, different tests definitely separate PCIe x4 from x2 throughput.
Thanks for the article Les!
It’s great to see you opening up your reviews to more hardware while still keeping it relevant
to storage technologies!
I like the mobo but i still say that two 840 pros in raid 0 are still the way to go perf wise.
That said i can clearly see the patern of where the industry is moving and that’s the M.2.
Can you elaborate on that? All the benchmarks suggest that’s not the case, but I could be misinterpreting the data as I’m new to the I/o performance conversation.
I am just happy to see the XP941 being so fast as is. For me it’s win-win as the size of my 1U’s shrink, and at they same time they get faster, and bootable. I will use them to load my data into a RAM template, and rarely write to them. Lets hope our M$ gatekeepers will let us use 24GB out of 32GBs w/o any performance issues.
Hi I am glad I look at this site quite often I think you do
a real good job on everything ssd.
Also I am thinking of buying an extreme 6- Z97 1150 socket with a 4790k canyon this xmas.
Plus the Samsung M.2 XP941 128 I just don’t know?
I was originally going for Asus Maximus Ranger plus the
4790k Canyon and two Samsung 120 gb 850
EVO SSD’s Many thanks if you can help.
It’s easy.
You’ve seen the 840p results. Multiply by 2X and take -10% out.
You’ll find that you are around the same “1GB/S” read/write territory as the M.2’s.
BUT you also get to enjoy that sweet fast ramp up in performance in the low end up to 8K. The 4k write will also be about double.
Just curious, are the M2 slots eligible to be included in a RAID set?
Of course the could be used that way but you have to consider that the RAID set of two XP941 SSDs would be restricted to the lowest speed which is dual lane travel. That might get you a negligible improvement on the XP 941 alone in the ultra M.2 slot. Just to be sure I will try to do this prior to taking off for China in a few days…
Just to cover all the bases, can the M2s be in a mixed RAID with equal sized SSDs?
I wonder…what if there were 2 M.2 x4 slots on that board….combined with 2x XP941….
Then any thought of decent gfx, other than integrated…might be gone. Intel needs to increase total PCIe lane count for something like that.
I wouldn’t care for 1x8PCIE for Graphics ( don’t think it would hurt performance much) and 2x4PCIE lanes for M.2…but you’re right…Intel needs to increase lanes to 24+ for something like this to happen properly…
X79! 40 pci-e lanes if using a 6 core SB-E or Ivybridge-E. Too bad it came out in 2011 and X99 isn’t here yet and no X79 boards with M.2 connectors.
I’m actually pretty satisfied with Intel’s iGPU.
I’d love to see two M.2 slots running at PCIe x4, combined to RAID 0, and which can be booted from. Oh my…
Exactly, like if an X79 board were to sprout some M.2 connectors in a larger than regular ATX size then one would have 40 PCI-e lanes with which to delegate 8 lanes to GPU A, 8 to GPU B, 4 or 8 to your m.2 SSD’s, and use the rest for the other crap that needs to ride the pcie bus. Perhaps in X99?
Such a great article, so glad M.2 is finally arriving…
It’s great to see you opening up your reviews to more hardware while still keeping it relevant
to storage technologies! https://goo.gl/ai61Qh
How does this m2 port work anyway?
IS it similar to NVMe setup as these disk also uses PCIe slot??
It is similar only in use of PCIe lanes. NVMe cuts the number of commands significantly which provides for better performance.
can you run the samsung xp941 at Gen3 x2?
No. The controller of the device has to be a PCIE Gen 3 controller to do that and there are none in existence just yet.
So the Samsung is a Gen 2 Device right ?
All current SSD PCIe products are Gen 2. We don’t even know of a controller in the works yet that would tackle Gen 3.
so the xp941 is gen2 ?
What about overclocking CPU? Have you tried it with this mobo?
We haven’t overclocked the CPU on this system just yet….our storage backlog hasn’t allowed it.
I was wondering if I could use the XP941 with a PCIe 2.0 x4 adapter on a PCIe 2.0 x 16 slot in my old Dell T7500 precision Desktop?
There shouldn’t be any problem but it won’t boot.
LES – Great review. I’ve read the other reviews for the motherboard and the XP941. The other reviews weren’t exactly positive about two items. I figured if anyone knew it would be you.
1. Can Microsoft Windows 7 be installed and used with the XP941 and the ASRock Z97 Extreme 6 motherboard? Some authors were under the impression that Windows 8 or 8.1 would work but Win 7 would not.
2. Will TRIM work with the XP941 or does it have to rely on native garbage collection without TRIM?
This year Samsung is already mass producing and distributing their new SP951 successor to the XP941. The new model is PCIe 3.0 x4 instead of PCIe 2.0 x4. How about a review?
It works with any OS if you set up your usb boot drive correctly. Xp941 with Windows 7 OS.
Hey LT.
Happy with the Z97 / XP941. Thank You.
Right now I run only on die GFX and a single PCI-e 1X connector to an external Analog Devices DSP Rack, and the XP941 w/ OS+Apps. on a Vertex 4.
So my question is can I dump my ancient Vertex 4 OS+Apps. SSD, and use the 2X M.2 with the M6e w/o any bandwidth issues.
This means no GFX card, on die GFX only, 1 x PCI-e 1X for connections, an XP941 in 4X slot, w/ a new M6e in the 2X slot. Dual M.2’s means a new smaller 1U too.
Have you tested both slots simultaneously….Thanks.
Thanks you for your Review
You are welcome.
Les any idea of both M.2s work simultaneously…? I would not have any other storage devices, Small 1U for a new build. Thanks
hello, I do not understand, the intel i7 4790k has only 16 pci lines, and to use the PCIe x4 M.2 requires 4 lines pci espress. by connecting a video card gtx760 on x16 pci expres not work well to find only 12 ???? thank you very much
hello, with a x99 board with socket https://www.msi.com/product/mb/X99S-SLI-PLUS.html#hero-overview with x4 Gen3. M.2 works ?? and the 5820k intel pci 28 lines
https://ark.intel.com/es/products/82932/
if it worked ????
thank you very much for the note
I don’t quite know what you are asking but that is correct that you cannot run a gfx card at x16 and a M.2 at x4 with only 16 lanes…
The M.2 x4 is PCI 2.0 correct? Isn’t that why they have a PCIe 2.0 @ x4 so you do not lose that PCIe 3.0 bandwidth?
Otherwise, why would anyone want to have to run a single GFX card in 8x mode so that there M.2 will have the bandwidth to run?
Can I have 2 M.2 SSDs on one motherboard? (one for OS and Applications, the other for media and gaming)? Motherboard Ex: ASUS mRampage V X99 ROG or ASUS X99 Deluxe?
Absolutely! You can also RAID both if you wish and, if that board was an ASRock, you could run both at 4 lanes, getting full potential.
Hello could you help me out with some info iv got an asrock exteme 11 x99 board and 2x 240gb ultra m.2 that i have slot in the boad is there a way i can raid them both together to make it 480gb?in the the bios i have selected raid when i reboot there is no option for raid when i press ctrl-i hope someone can help me out thank you 🙂
I have this mother board with i7 4470 and XP941 SSD 256Go on port M2_1. Boot on Archlinux via grub… add 2 HDD WD 2To and 1 SSD OCZ Vertex2 256Go. All on SATA3 port (not ASmedia).
Also, i have problem with the mother board and the SSD OCZ. On the Bios, it see the SSD drive, but sometimes not read it on boot menu (but ok, this i don’t care). But… 80% of boot times, the SSD is not show and then i can not mount him. I try change port, and put him on first SATA3 port… same problem.
So, maybe you would be curious and want to try to add a SSD drive with this config for check if this is a bug from Asrock ? I send Asrock message and let message about that on there forum, but never answer and delete the messages on the forum (i think they don’t care and just don’t want potential customers know this problem).
Asrock use his money for provide big adds on his product, but maybe this product his far from works fine, i would like to be sure.
Thanks
Recently read your article Understanding M.2 NVMe RAID SSD Boot and 2 / 3x M.2 NVME SSD RAID0 Tested . I wonder takes to put two Samsung 950 Pro 512GB in RAID and boot in my Asrock Z97 Extreme 6 on Windows 7 , and knowing that one slot M2 is X4 and another X2 , the speed would be limited to the lower, or the average sum of the two ?
Many thanks if you can help .
It would be limited to the lower unfortunately.
