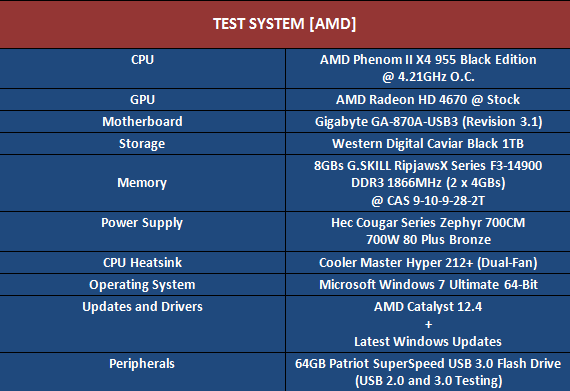

TESTING SYSTEM
For consistency’s sake, the same test system from the Shinobi was reapplied to the XL with driver updates:
BENCHMARKS

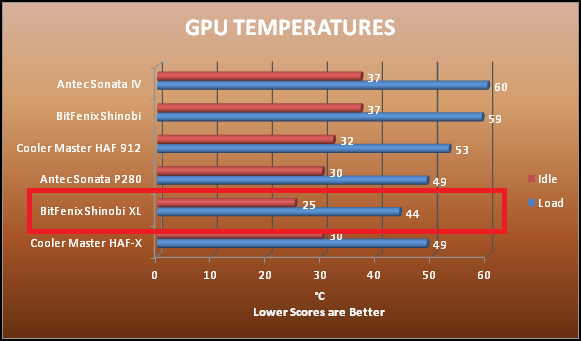

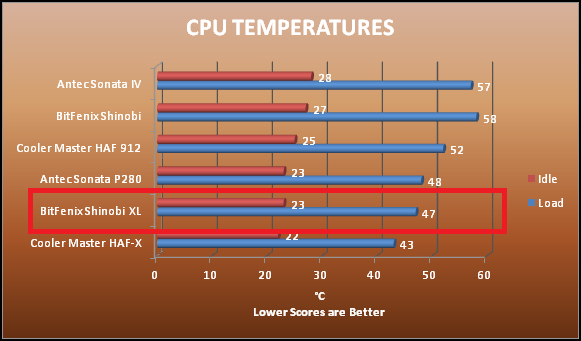

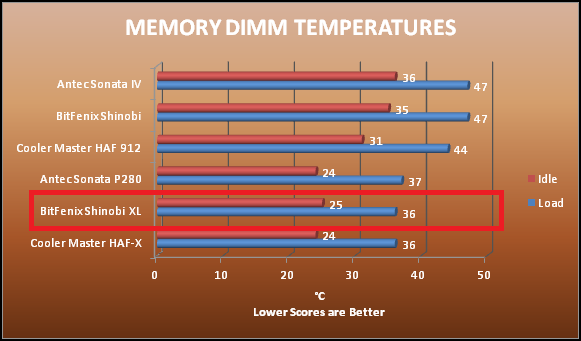

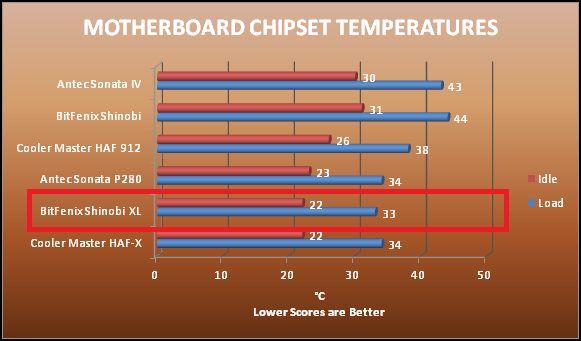

The AIDA64 system stability and benchmark utility was used to test the CPU, chipset, DIMM, and hard-drive temperatures, and 3DMark 11 for the GPU temperature. Two extra cases joined the fray, both XL-ATX ready: Antec Sonata P280 and Cooler Master HAF-X. The benchmarks from the original Shinobi and accompanying competition are incorporated as well:

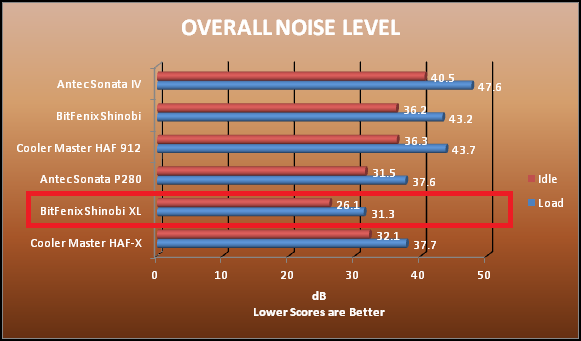

The ambient temperature was 22°C. The sound levels were also recorded before, during, and after these tests. The Shinobi XL made barely a whisper of noise:
