TOP, BOTTOM, FRONT, AND BACK

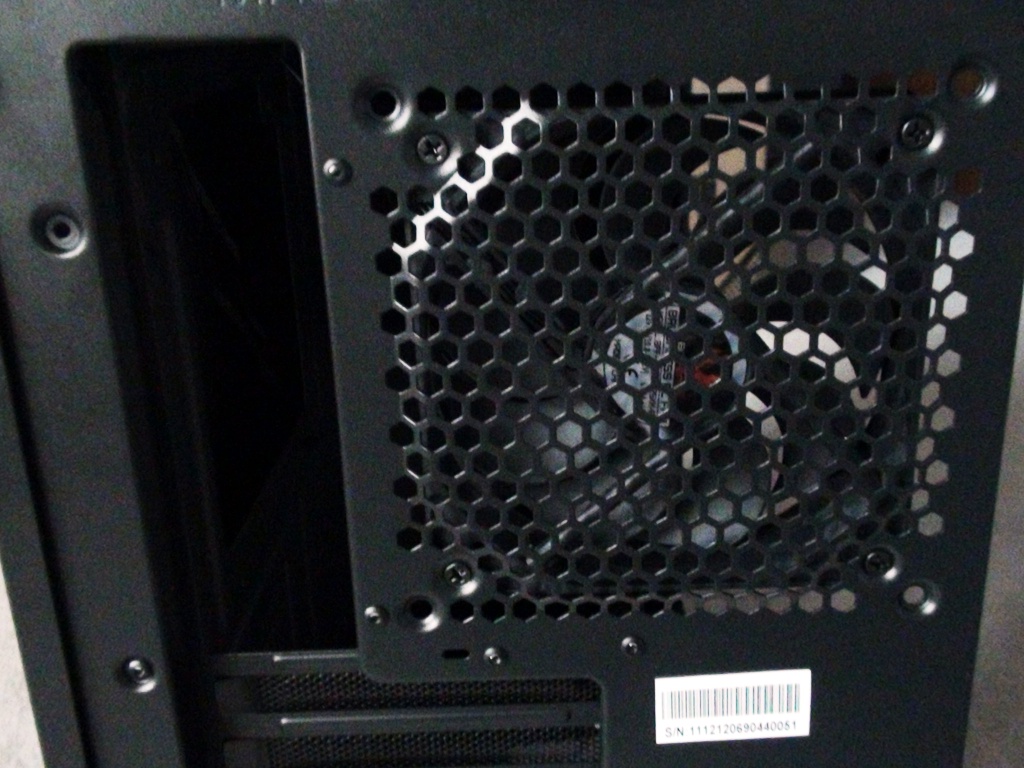

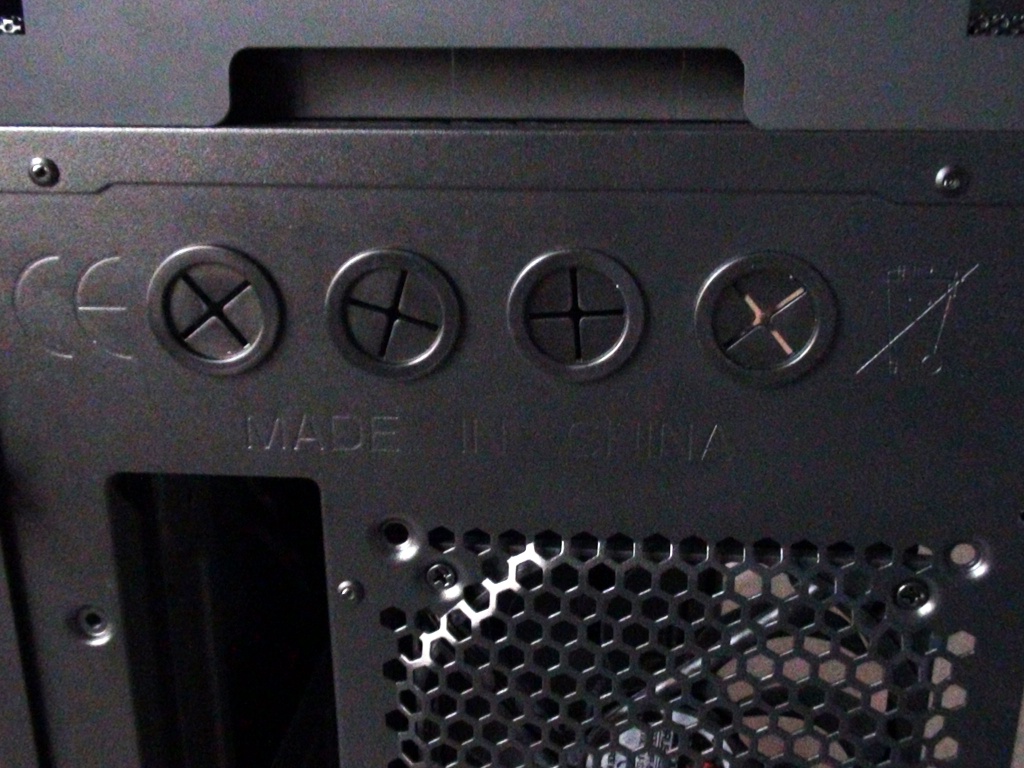

Around the back, going from top to bottom, there is the slot needed to remove the top panel of the case. Below it, there are four rubber grommets in order to run tubes for water-cooling. On the left is the motherboard I/O panel cut-out, and a 120mm BitFenix Spectre rear exhaust fan to the right (upgradable to 140mm):
The nine PCI-E expansion slots have a neat ventilated mesh covering, instead of the usual solid aluminum. Finally, at the bottom lies space to mount the power supply:
At the top, a large ventilated metal mesh section houses a 230mm Spectre fan, and can also easily accommodate a 360mm radiator, or three 120mm fans. Also note the same ventilated indented mesh panels extended from the front of the case, which are running all the way to the back:
FRONT INPUT/OUTPUT PANEL
The front-panel (located at the top of the case), has the same orientation as the Shinobi. There is the small reset button, the big power button, microphone and headphone jacks, as well as the hard drive and power activity LEDs. The change comes in the USB ports. The XL sports four blue USB 3.0 ports (up from the four USB 2.0 in the original), as well as a new addition called a SuperCharge port (yellow). This is a pretty unique add-on, as it allows USB gadgets to be charged in the same speed and fashion as if they were plugged directly into a dedicated power source (2.5A):

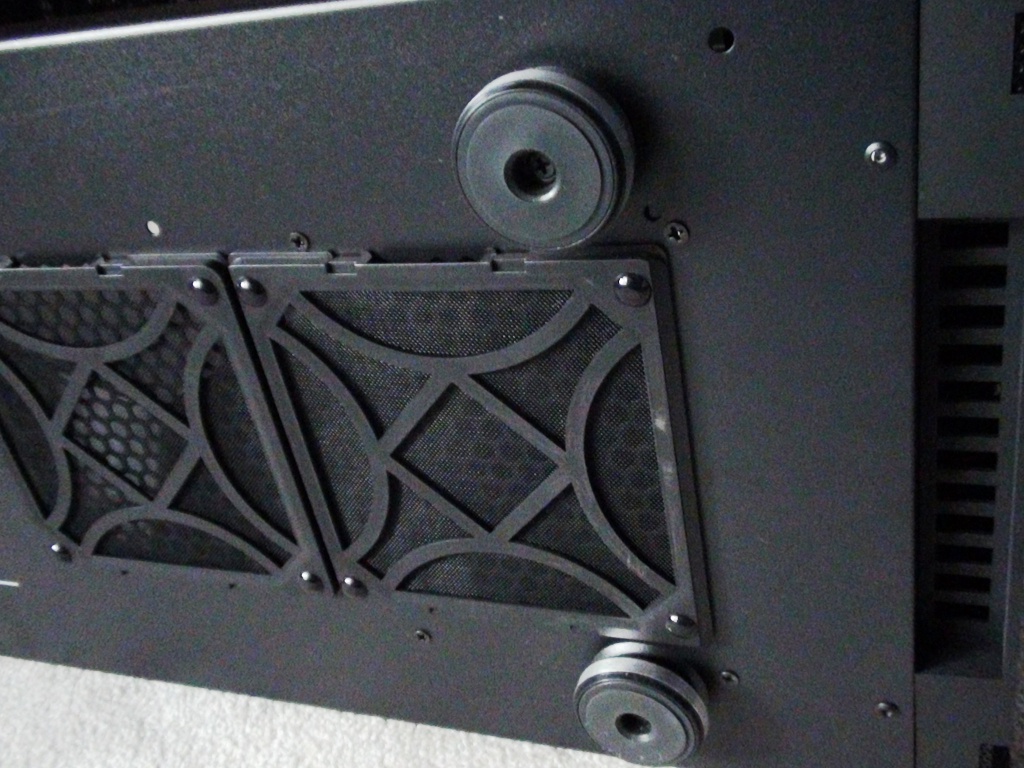

Finally, at the bottom, there are four snazzy and twistable rubber feet, a removable dust filter for the PSU, and dual fan dust filters for mounting optional 120mm cooling fans at the inside-bottom of the case (fans not included). The handle slot to pull open the front of the case is also present, which is raised a tad from floor level to allow the ventilation grill to bring in fresh air:
