Intel DC P3520 Enterprise NVMe SSD Review (1.2TB) – With 3D NAND Comes Value

TEST SETUP AND METHODOLOGY

In testing all enterprise drives we focus on long-term stability. In doing so, we stress products not only to their maximum rates, but also with workloads suited to enterprise environments. We use many off-the-shelf tests to determine performance, but we also have specialized tests to explore specific behaviors we encounter. With enterprise drives, you will see that we do not focus on many consumer-level use-cases.

When testing SSDs, the drive is purged and then preconditioned into a steady state before capturing its performance results. We also disable all write caching on the DUT when possible, this ensures consistent results that are compliant with SNIA standards. Our hope is that we present tangible results that provide relevant information to the buying public.

SYSTEM COMPONENTS

PC CHASSIS:	Thermaltake Urban T81
MOTHERBOARD:	ASRock X99 WS-E
CPU:	Intel Xeon E5-2690 v3
CPU COOLER:	Thermaltake Water 3.0 Ultimate
POWER SUPPLY:	Thermaltake Toughpower 1500W Gold
GRAPHICS:	MSI GT 720
SYSTEM COOLING:	be quiet! Silent Wings 2
MEMORY:	Kingston ValueRAM DDR4 2400MHz ECC 64GB
STORAGE:	Crucial MX200 500GB
OS:	Windows Server 2012 R2
MOBO FIRMWARE:	1.70

This Test Bench build was the result of some great relationships and purchase; our appreciation goes to those who jumped in specifically to help the cause. Key contributors to this build are our friends at ASRock for the motherboard and CPU, be quiet! for the cooling fans, and Thermaltake for the case. We have detailed all components in the table below and they are all linked should you wish to make a duplicate of our system as so many seem to do, or check out the price of any single component. As always, we appreciate your support in any purchase through our links!

SNIA TESTING

The Storage Networking Industry Association has an entire industry accepted performance test specification for solid state storage devices. Some of the tests are complicated to perform, but they allow us to look at some important performance metrics in a standard, objective way.

SNIA’s Performance Test Specification (PTS) includes IOPS testing, but it is much more comprehensive than just running 4KB writes with Iometer. SNIA testing is more like a marathon than a sprint. In total, there are 25 rounds of tests, each lasting 56 minutes. Each round consists of 8 different block sizes (512 bytes through 1MB) and 7 different access patterns (100% reads to 100% writes). After 25 rounds are finished (just a bit longer than 23 hours), we record the average performance of 4 rounds after we enter steady state.

• Purge: Secure Erase, Format Unit, or vender specific
• Preconditioning: 2x capacity fill with 128K sequential writes
• Each round is composed of .5K, 4K, 8K, 16K, 32K, 64K, 128K, and 1MB accesses
• Each access size is run at 100%, 95%, 65%, 50%, 35%, 5%, and 0% Read/Write Mixes, each for one minute.
• The test is composed of 25 rounds (one round takes 56 minutes, 25 rounds = 1,400 minutes)

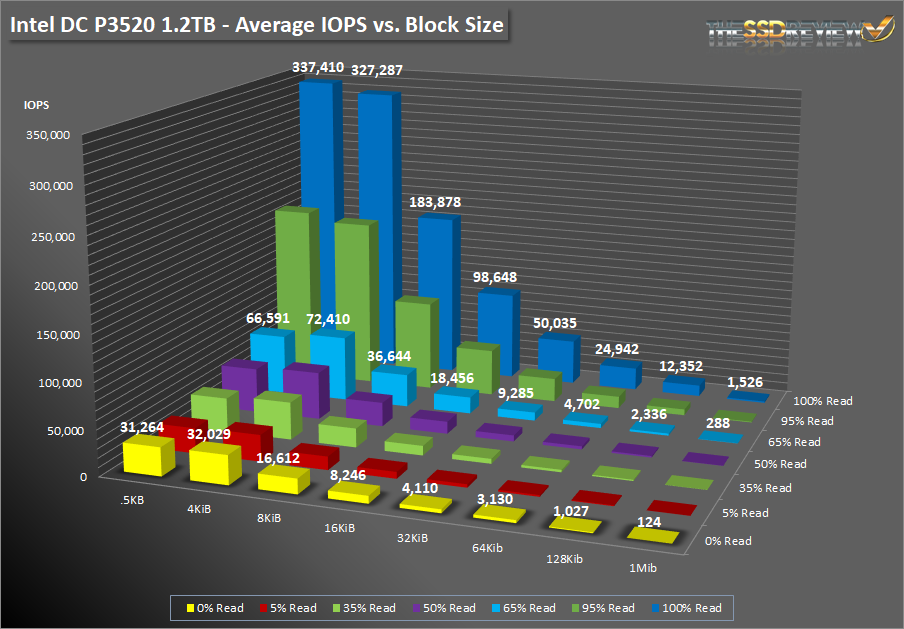

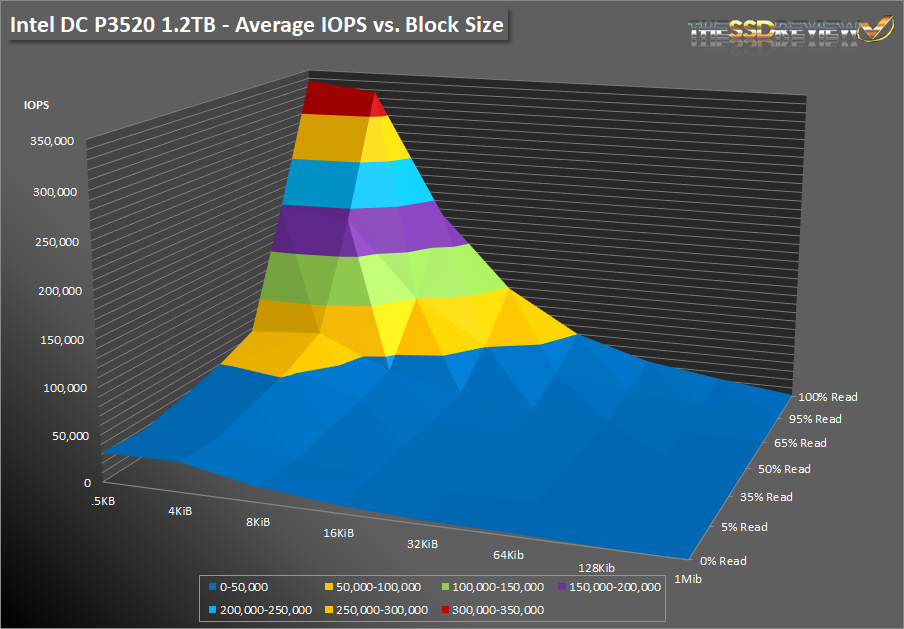

Unlike some of our other performance tests, the SNIA tests only last for a relatively short period of time each (1 minute), but they cover many more access patterns and transfer sizes to give us a good picture of the SSD’s performance. All tests were done at a QD of 256. As the results show, the Intel DCP3520 delivered almost 330K IOPS at 100% 4K read and 32K IOPS during 100% write. Mixed performance was where it needed to be to match Intel’s specs of 80K at 70/30% read/write. The 8K and 16K results scale well here as well and results of 8K are half of 4K’s and 16K is half of that and so on.

LATENCY

To specifically measure latency, we use a series of 512b, 4K, and 8K measurements. At each block size, latency is measured for 100% read, 65% read/35% write, and 100% write/0% read mixes.

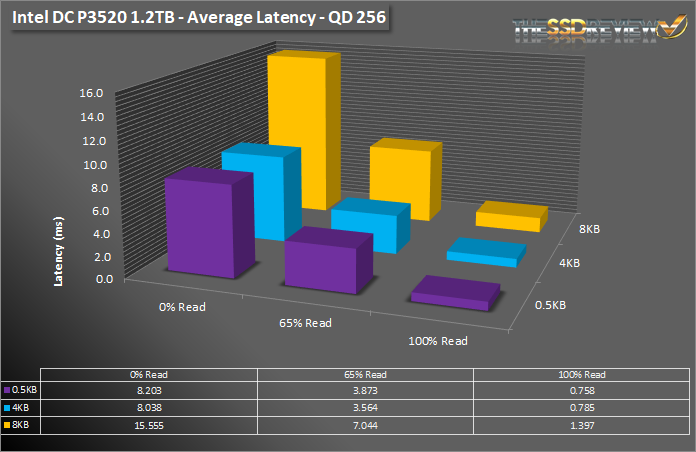

Latency results from this test prove the Intel DC P3520 is a lower end, value oriented SSD. Average latency results are higher than other PCIe NVMe SSDs we have tested with results ranging from just under 1ms up to 15ms.

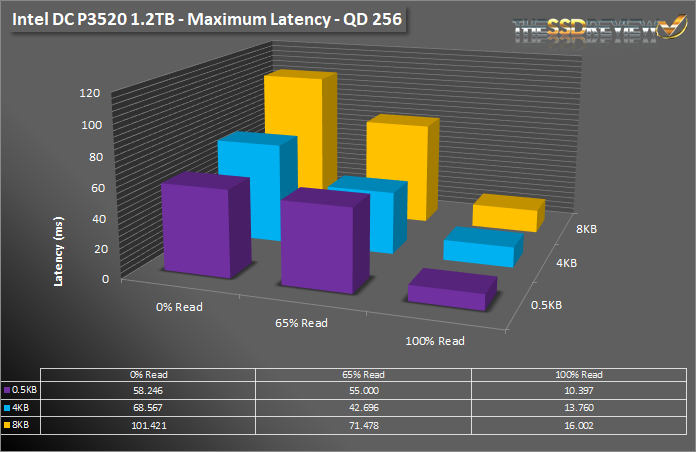

Similar to the average latency results, maximum latencies are also higher than some of the other PCIe SSDs we have tested. In read workloads, we see a max of 16ms at 8K. During mixed 65/35% read/s write we see max latencies between 55 and 72ms. Finally, at 100% write we see latencies that go from 58ms up to 101ms.
